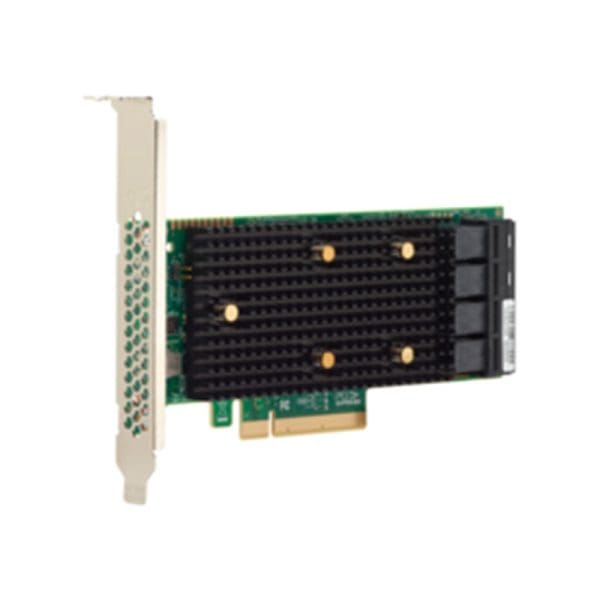

Manufacturer: Broadcom
Part Number or SKU# 05-50077-02
Product Type: SAS-SATA
Technical Information of SAS-SATA Adapter
Interface : Host Bus Adapter (HBA)
Port Count : 16 Internal
Connectors : Two X8 Sff-8654
Host Interface : X8 PCI-E Gen 4.0
Storage Interface : 12GBPS SAS, 6GBPS SATA, Gen 4.0 PCI-E (NVMe)
Management Utilities Information for PCI-E Adapter
Lsi Storage Authority (lsa)
Storcli (command-line Interface)
Hii (uefi Human Interface Infrastructure)
Dimensions : 6.127 Inch × 2.712 Inch (155.65 Mm × 68.90 Mm)
Operating Conditions
Operating: 0°c To 55°c, 5% To 90% Non-condensing
Storage: -45°c To +105°c, 5% To 95% Non-condensing.
Typical Power : 8.9w
Operating Voltage : 12v ±8%, 3.3v ±9%
Mtbf (calculated) > 5,000,000 Hours At 40°c
