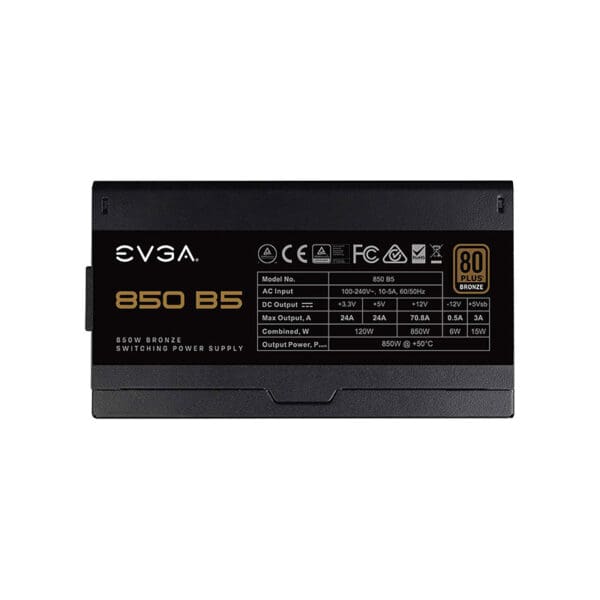

Brand: EVGA
Series: 850 B5
Model: 220-B5-0850-V1
Type: ATX12V / EPS12V
Maximum Power: 850W
Fans: 1 x 135mm Fluid Dynamic Bearing Fan
PFC: Active
Main Connector: 20+4Pin
+12V Rails: Single
PCI-Express Connector: 6 x 6+2-Pin
SATA Power Connector: 9
Haswell Support: Yes
Modular: Full Modular
Efficiency: 89% or Higher (Under typical load)
Energy-Efficient: 80 PLUS BRONZE Certified
Over Voltage Protection: Yes
Input Voltage: 100 – 240 V
Input Frequency Range: 50/60 Hz
Input Current: 10 – 5 A
Output: +3.3V@24A, +5V@24A, [email protected], [email protected], +5Vsb@3A
MTBF: >100,000 Hours
Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement
Dimensions: 3.39″ x 5.91″ x 5.91″
Max PSU Length: 150 mm
Weight: 3.50 lbs.
