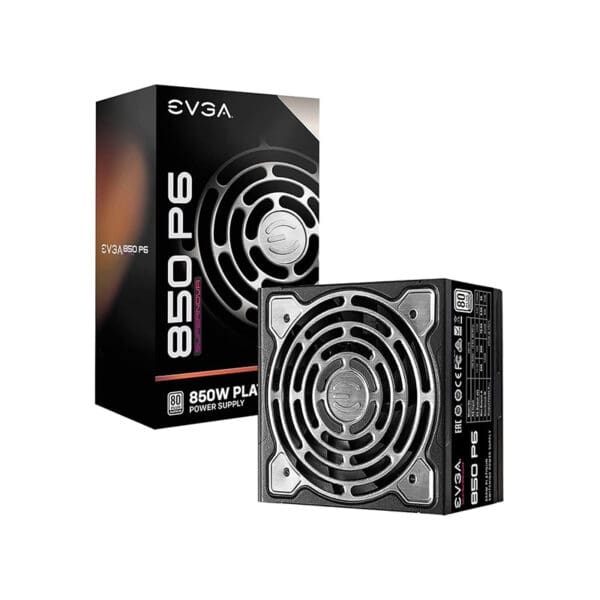

Brand: EVGA
Model: 220-P6-0850-X1
Modular: Full Modular
Maximum Power: 850W
Energy Efficiency: 80 PLUS Platinum Certified
Color: Black
Power Supplier Form Factor: ATX
Fan LED: None
Fan Size: 135MM
PFC: Active
Type: ATX12V / EPS12V
Main Connector: 24Pin
PCI-Express Connector: 6 x 6+2-Pin
SATA Power Connector: 9
Efficiency: 92% or higher (under typical load)
Input Voltage: 100 – 240 V
Input Frequency Range: 50/60 Hz
Input Current: 12 – 6 A
Output: +3.3V@24A, +5V@24A, [email protected], [email protected], +5Vsb@3A
MTBF: 100,000 Hours
Max PSU Length: 140 mm
Connectors:
1 x 24 Pin ATX
2 x 8 Pin EPS (+4)
6 x 8 Pin PCIe (6+2)
9 x SATA
4 x Four-Pin Peripheral
1 x Floppy
Cable Spec:
ATX Cable: 1 x 600mm (m)
EPS Cable: 2 x 700mm (m)
PCIe Cable: 2 x 700mm, 2 x 700mm, 820mm (m)
SATA Cable: 3 x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable: 1 x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter: 1 x 100mm
AC Power: 1 x 1500mm (m)
Dimension: 3.40″ x 5.90″ x 5.50″
Weight: 7.00 lbs.
