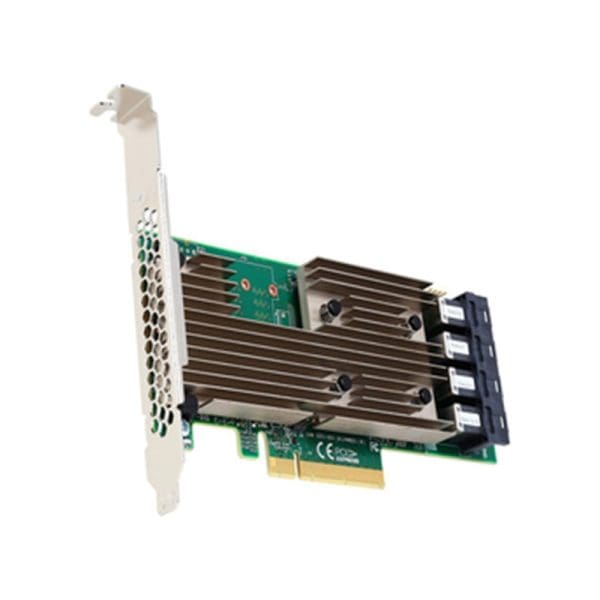

2HG8V Dell 12 Gigabytes (PCI-E) 3.0 Serial-Attached SCSI (SAS) Non-Raid Controller

2HG8V Dell 12 Gigabytes (PCI-E) 3.0 Serial-Attached SCSI (SAS) Non-Raid Controller

$490.00

The Dell 2HG8V 9305-16i is a high-performance, 12GBPS SAS internal controller designed for use in high-speed storage applications. With 16 internal ports, this controller provides maximum connectivity for storage arrays and other storage devices.

The PCI-E 3.0 interface provides high-speed data transfer capabilities, ensuring that data is transmitted quickly and efficiently. This controller is designed for use with non-RAID storage configurations, so users have complete control over their storage arrangements.

2HG8V Dell 12 Gigabytes (PCI-E) 3.0 Serial-Attached SCSI (SAS) Non-Raid Controller
$490.00
Contact Us

Manufacturer: Dell

Part Number or SKU# 2HG8V

Device Type: Non-Raid Controller

Internal Ports: 16 Port

Technical Information

Host Bus Type: X8 Lane PCI-E 3.0

Physical Dimensions: 2.7 X 6.6

Devices Supported: 1024 Non-raid SAS Devices Per Controller

Internal Connectors: 4 Mini-SAS HD SFF8643

Operating Temperature: 0°c To 55°c

Operating Voltage: +12v +/-8%, 3.3v +/-9%

Os Support: Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical

Cable Support: Passive Copper, Active Optical

I/o Controller: Sas3224

SKU: 2HG8V Category: Tag:
