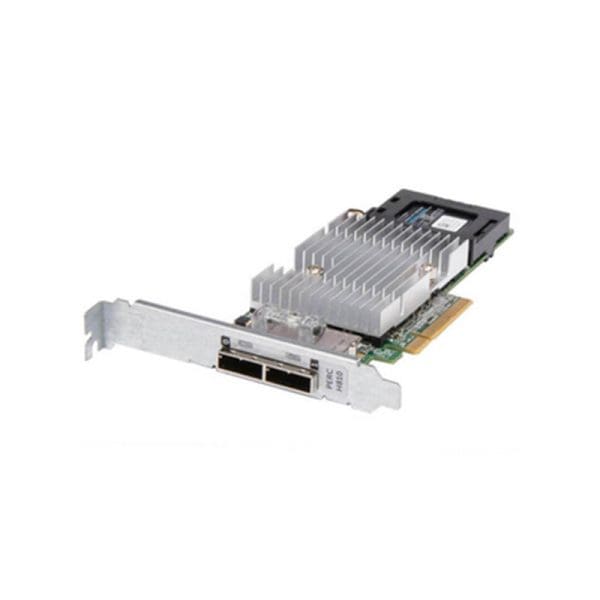

342-3891 Dell Perc H810 SAS 6GBPS PCI-E 2.0 Raid Controller

$85.00

A RAID (Redundant Array of Independent Disks) controller is a hardware device or a component of the storage subsystem that manages the process of combining multiple physical disk drives into a single logical unit. The primary objectives of a RAID controller include data redundancy, improved performance, and fault tolerance.

RAID configurations are widely adopted in enterprise environments to enhance data reliability and performance. By distributing data across multiple disks and creating redundant copies, RAID protects against data loss due to disk failures. Additionally, certain RAID levels offer improved read and write speeds, contributing to overall system efficiency.

342-3891 Dell Perc H810 SAS 6GBPS PCI-E 2.0 Raid Controller
$85.00

Manufacturer: Dell

Part Number or SKU# 342-3891

Product Type: SAS Controller

Product Name: Controller

Technical Specifications

Device Type: Storage Controller (RAID) – Plug-in Card

Generation: PCI-Express

Interface Type: PCI Express 2.0 x8

Data Transfer Rate: Up to 6Gb/s per Port

Connectors: Two External mini-SAS SFF8088

Non-Volatile Cache: 1GB

CacheCade: 1.1

Battery (Onboard): Yes

Max Hard Drives Support: 192

SAS Controller: 2 x Dual-Core PowerPC

RAID Controller: RAID 0, 1, 5, 6, 10, 50, 60

Operating Voltage: +3.3V
