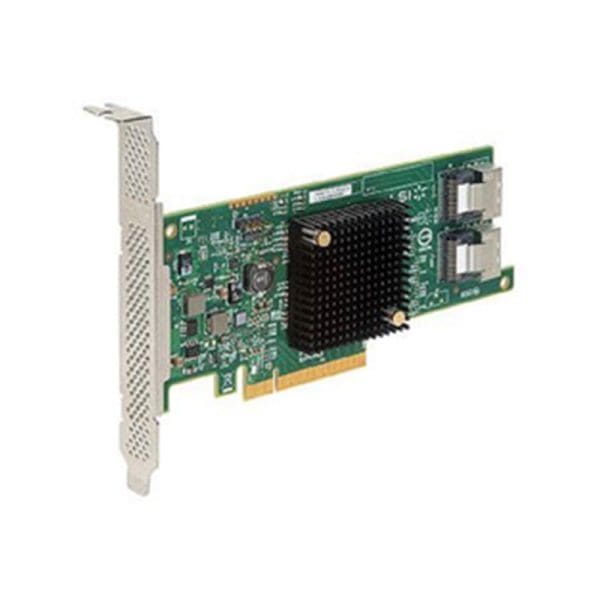

406-BBHY Dell Lsisas9207-8i 6gb/s 8port Int Pci-e 3.0 Sata Sas Host Bus Adapter

406-BBHY Dell Lsisas9207-8i 6gb/s 8port Int Pci-e 3.0 Sata Sas Host Bus Adapter

$130.00

The Dell Lsisas9207-8i 6gb/s 8port Int Pci-e 3.0 Sata Sas Host Bus Adapter is a hardware device used to connect multiple storage devices to a computer system. In this article, we will provide a detailed explanation of what the Dell is, its features, benefits, and uses.

A Host Bus Adapter (HBA) is a hardware device that enables communication between a computer system and storage devices such as hard drives and solid-state drives. The HBA acts as a bridge between the computer’s processor and the storage devices, allowing data to be transmitted between them.

406-BBHY Dell Lsisas9207-8i 6gb/s 8port Int Pci-e 3.0 Sata Sas Host Bus Adapter
$130.00
Contact Us

Manufacturer: Dell

Part Number or SKU# 406-BBHY

Product Type: Controller

Product Name: SAS-SATA

Technical Specifications for 406-BBHY SAS-SATA

Product Description : 8port Int 6gb/s Sata+sas Pcie3.0 Hba & Documentation Cd

Io Controller : lsi Sas2308/ Fusion Mpt 2.0

Storage Connectivity Data Transfer Rates : 8 Ports 6gb/s Sas 2.1 Compliant

Sas Bandwidth : half Duplex – 600 Mb/s Per Lane

Port Configurations : 8 Ea X1 Ports (individual Drives) 2 Ea X4 Wide Port

Host Bus : X8 Lane Pci Express 3.0 Compliant

Pci Data Burst Transfer Rates : half Duplex – X8 Pcie 4000 Mb/s

Physical Dimensions : Low Profile (2.6 X 6.6)

Connectors : Two Mini-sas Internal Connectors (sff8087)

Cable Support : Passive Copper

Pci Card Type : 3.3 V Add-in Card

Operating Voltage : +12v +/-8 3.3v +/-9

SKU: 406-BBHY Category: Tag:
