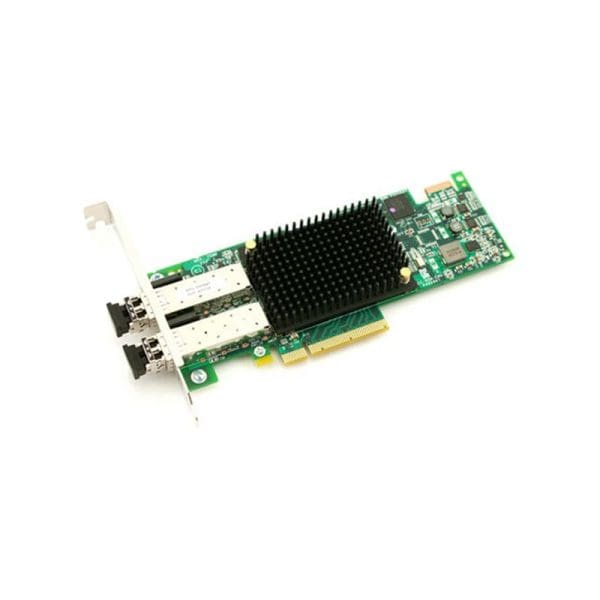

406-BBIP Dell Lightpulse Lpe16002 16 Gigabytes Per Second Host Bus Adapter (HBA)

406-BBIP Dell Lightpulse Lpe16002 16 Gigabytes Per Second Host Bus Adapter (HBA)

$365.00

The 406-BBIP Dell Lightpulse Lpe16002 16GBPS Dual Port Fiber Channel HBA with Standard Bracket Card Only, follow these steps:

Install the HBA card into an available PCIe slot on the host server.

Connect the optical fiber cables from the HBA card to the storage devices. Make sure to match the port numbers on the HBA card with the corresponding port numbers on the storage device.

Power on the server and storage devices.

Install the HBA driver on the host server. This can be done by downloading the driver from the Dell website or using the OS-specific tools for installing drivers

406-BBIP Dell Lightpulse Lpe16002 16 Gigabytes Per Second Host Bus Adapter (HBA)
$365.00
Contact Us

Brand: Dell

MPN : 406-BBIP

Type: Controller

Sub-Type: Fiber Channel

Interface: PCI Express Gen3 x8

Operating System: Windows, Linux, and VMware

Ports: 2 x 16GB Fiber Channel ports

Data Transfer Rate: 16 Gbps

Optical Wavelength: 850nm

Optical Connectors: LC (Local Connector)

Maximum Distance: 10 km

Card Height: Low Profile

Bracket Height: Standard Height

Operating Temperature: 0°C to 55°C

Operating Humidity: 5% to 95% non-condensing

Storage Temperature: -40°C to 85°C

Power Consumption: 20W

Regulatory Compliance: FCC, CE, RoHS, WEEE, TUV

SKU: 406-BBIP Category: Tag:
