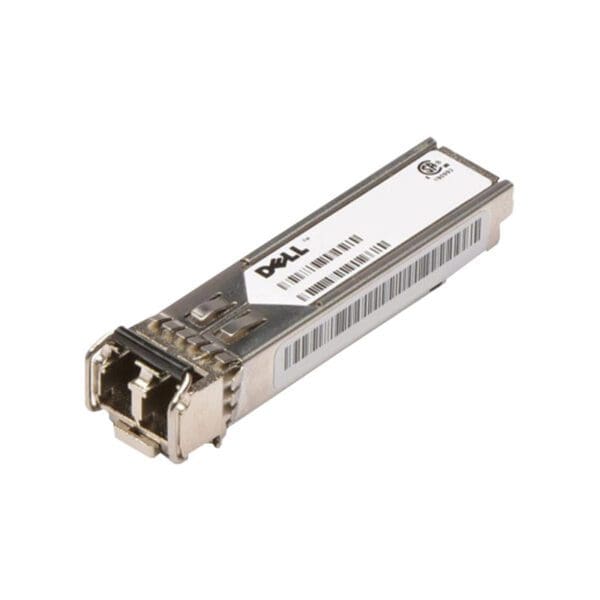

FORM FACTOR: SFP+
INTERFACE: Single mode
CONNECTOR: LC Duplex
WAVELENGTH TX: 1310 nm
WAVELENGTH RX: 1310 nm
WAVELENGTH TX MIN: 1270nm
WAVELENGTH TX MAX: 1355nm
WAVELENGTH RX MIN: 1260nm
WAVELENGTH RX MAX: 1565nm
BANDWIDTH : 11.3 Gbit/s
BANDWIDTH : 600 Mbit/s
LASER: DFB
RECEIVER TYPE: PIN
RECEIVE MIN: -14.4 dBm
DISTANCE: 10 km
POWERBUDGET (DB): 6.2 dB
TRANSMIT MAX: 0.5 dBm
TRANSMIT MIN: -8.2 dB
TEMPERATURE RANGE: 0? – 70?
DIGITAL DIAGNOSTIC MANAGEMENT (DDM): internally calibrated
RECEIVE MAX. (RECEIVER OVERLOAD): 0.5 dBm
TYPE: LR
EXTINCTION RATIO: 3.5 dB
Width: 13.4 mm
Depth: 56.5 mm
Height: 8.5 mm
