40AS0090US Technical Specifications

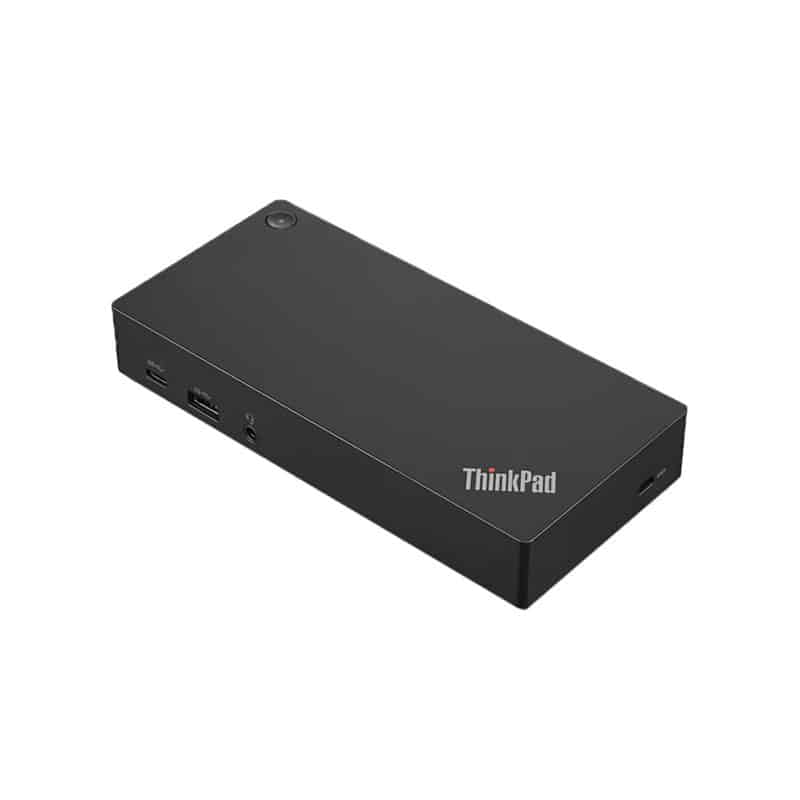

Lenovo ThinkPad USB-C Dock Gen 2 docking station
Manufacturer :Lenovo
Brand :Lenovo
Product Line :Lenovo ThinkPad
Model :USB-C Dock Gen 2
Country Kits :Canada, Colombia, Ecuador, Mexico, Panama, Peru, United States
Packaged Quantity :1
System
Device Type :Docking station
Docking Interface :USB-C
Video Interfaces :2 x DP, HDMI
Storage Controller
Type :None
Max Resolution Details
Max Resolution Details :1024 x 768 – 60 Hz (DisplayPort1 1.2 and DisplayPort2 1.2 and HDMI simultaneously), 1920 x 1080 – 60 Hz (DisplayPort 1.2 and HDMI simultaneously), 1920 x 1080 – 60 Hz (DisplayPort1 1.2 and DisplayPort2 1.2 simultaneously), 1920 x 1080 – 60 Hz (DisplayPort1 1.4 and DisplayPort2 1.4 and HDMI simultaneously), 2560 x 1600 – 60 Hz (DisplayPort 1.4 and HDMI simultaneously), 2560 x 1600 – 60 Hz (DisplayPort1 1.4 and DisplayPort2 1.4 simultaneously), 3840 x 2160 – 30 Hz (DisplayPort 1.2 only), 3840 x 2160 – 30 Hz (DisplayPort 1.4 and HDMI simultaneously), 3840 x 2160 – 30 Hz (DisplayPort1 1.4 and DisplayPort2 1.4 simultaneously), 3840 x 2160 – 60 Hz (DisplayPort 1.4 only), 3840 x 2160 – 60 Hz (HDMI only)
Networking
Data Link Protocol :Gigabit Ethernet
Interface Provided
Interfaces :1 x audio – headphones/microphone – mini-phone 3.5 mm 4-pole, 1 x audio / video – HDMI – 19 pin HDMI Type A, 1 x network – RJ-45, 1 x USB 3.1 Gen 2 with Always-on charging, 2 x audio / video – DisplayPort – 20 pin DisplayPort, 2 x USB 2.0, 2 x USB 3.1 Gen 2, 2 x USB-C
Cable Details
Cables Included :1 x USB-C cable
Power Device
Type :Power adapter
Power Provided :90 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :Microsoft Windows 7, Windows 10
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :BSMI, CB, cULus, EAC, FCC, ICES, KCC, Kvalitet, LoA, NOM, RCM, SII, TUV, Ukraine EMC DoC, VCCI
Features :MAC address pass-through, Preboot Execution Environment (PXE) support, Security lock slot (cable lock sold separately), Wake on LAN
Security Slot Type :Kensington security slot
Dimensions & Weight
Width :6.7 inch
Depth :3.1 inch
Height :1.2 inch
Weight :11.46 ounce
Dimensions & Weight (Shipping)
Shipping Width :8.3 inch
Shipping Depth :6.2 inch
Shipping Height :3 inch
Shipping Weight :33.86 ounce
