GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 573089-001

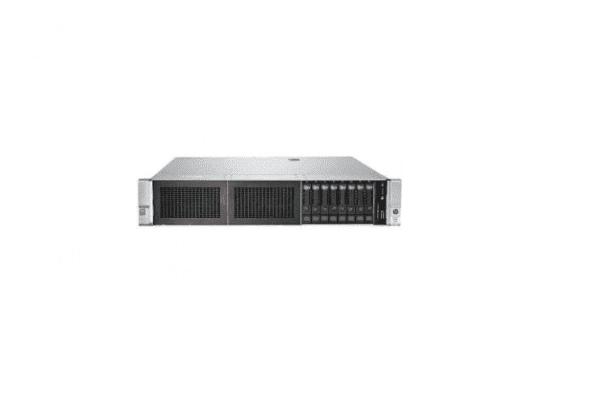

Product Name : Proliant Dl385 G7 2u Rack Mount (Entry Level)
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 6128 (2.0 Ghz, 80w)
Multi-Core Technology : 8 Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable.
Chipset Type : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache.
Installed Size : 12 Mb.
Cache Per Processor : 12 Mb.
RAM :
Installed Size : 4 Gb
Max Supported Size : 256 Gb
Technology : Ddr3 Sdram.
Memory Speed : 1333 Mhz.
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered.
Configuration Features : 2 X 2 Gb
Ram Supported : Pc3-10600 – 256 Gb – Registered Pc3-10600 – 64 Gb – Unbuffered.
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Internal Storage:
Standard : 8 Sff Sas/Sata Hdd Bays.
Optional : 16 Sff Sas/Sata Hdd Bays.
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 1+0
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Es1000
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated.
Ethernet Ports : 4 X Gigabit Ethernet.
Ethernet Controller : 2 X Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards :
IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB
IEEE 802.1P, IEEE 802.3AD (LACP)
POWER DESCRIPTION :
Power Device Type : Power Supply – Hot-Plug
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 460 Watt.
