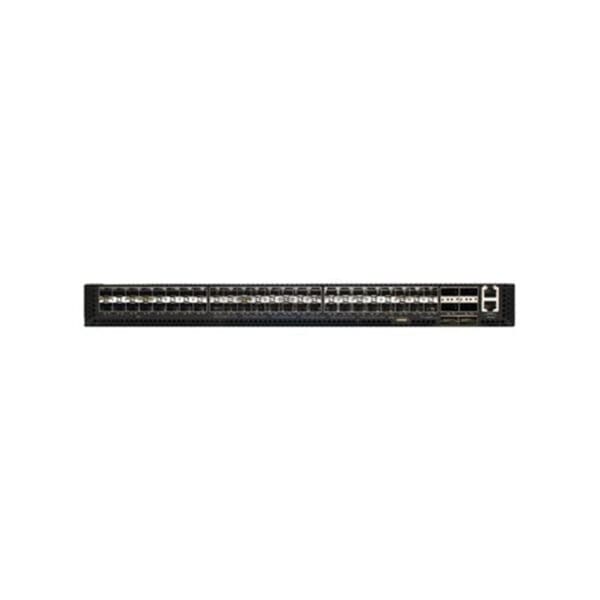

Device Type: Switch – 54 ports – L3 – managed
Enclosure Type: Back to front airflow rack-mountable 1U
Subtype: 40 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP
Capacity: Virtual interfaces (VLANs): 4000
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9216 bytes
Processor: 1 x Intel Atom C2538: 2.4 GHz
RAM: 8 GB DDR3 SDRAM
Flash Memory: 8 GB
Expansion / Connectivity
Power
Power Device: Internal power supply – hot-plug
Installed Qty:
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 282 Watt
Localization: North America
Software / System Requirements
Dimensions & Weight
Width: 17.4 in
Depth: 18.6 in
Height: 1.7 in
Weight: 19.73 lbs
