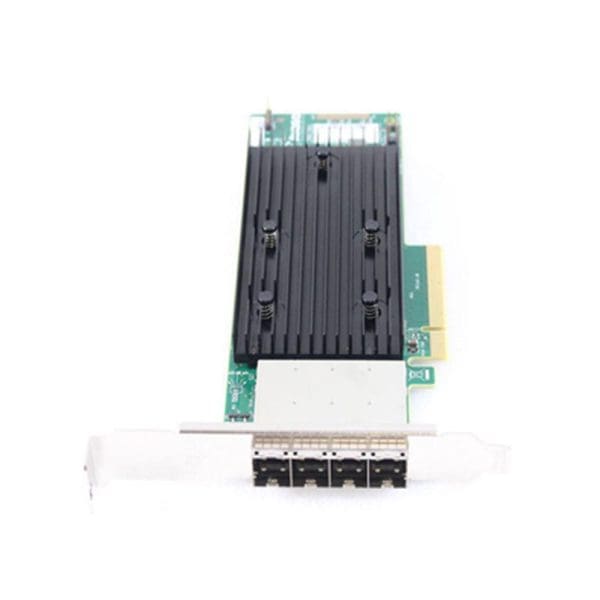

5YYRH Dell 12GB Quad-Port (PCI-E) Serial-Attached SCSI (SAS) Controller

5YYRH Dell 12GB Quad-Port (PCI-E) Serial-Attached SCSI (SAS) Controller

$575.00

The 5YYRH Dell 12GB Quad-Port PCI-E SAS Controller supports a maximum data transfer rate of 12 Gbps, which is the maximum speed at which data can be transferred over the SAS interface. The performance of the controller would depend on several factors such as the speed of the attached storage devices, the number of devices attached, the workload being processed, and the configuration of the system.

5YYRH Dell 12GB Quad-Port (PCI-E) Serial-Attached SCSI (SAS) Controller
$575.00
Contact Us

Manufacturer: Dell

Part Number or SKU# 5YYRH

Type: Controller

Sub-Type: SAS/SATA Controller

Technical Specification

Interface: PCI Express x8

Ports: 4 SAS/SATA ports

Data Transfer Rate: 6Gbps per port

Cache Memory: 12GB DDRIII

RAID Support: RAID 0, 1, 5, 6, 10, 50 and 60

Operating Systems: Windows, Linux, VMware

PCI Specification: PCI Express 3.0

Physical Dimensions: 6.6 x 2.71 x 0.7 inches (L x W x H)

Power Requirements: 300W or higher power supply

Operating Temperature: 10°C to 35°C

Humidity: 10% to 90% non-condensing

SKU: 5YYRH Category: Tag:
