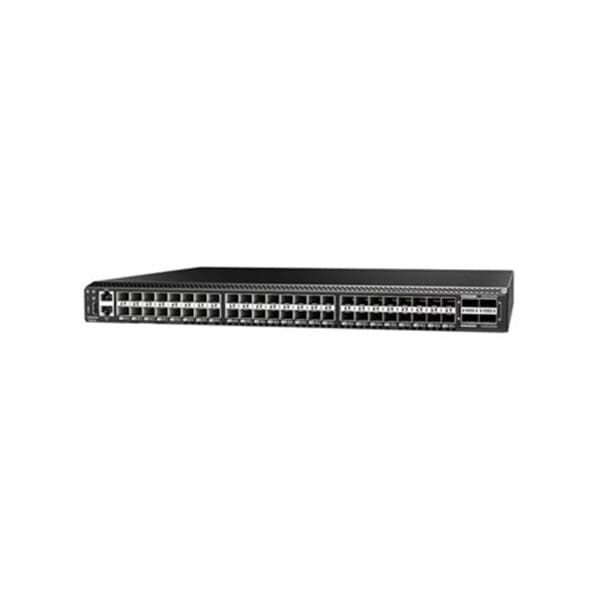

Device Type: Switch – 24 ports – Managed – with 24x 16 Gbps SWL SFP+ transceiver
Enclosure Type: Desktop, rack-mountable 1U
Subtype Fibre Channel
Ports: 24 x 32Gb Fibre Channel SFP+
Performance: Aggregate throughput: 2 Tbps ¦ Port-to-port latency: 780 ns
Capacity: Maximum frame size: 2112 byte ¦ Frame buffers: 15360
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS+, LDAP, FCAP
Expansion / Connectivity
Power
Power Device: Internal power supply – hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy: Scheme 1+1
Power Provided: 250 Watt
Voltage Required: AC 120/230 V (50/60 Hz)
Features: Rear-to-front airflow
Miscellaneous
Cables Included 1 x serial cable
Rack Mounting Kit: Included
Dimensions & Weight
Width: 44 cm
Depth: 35.6 cm
Height: 4.4 cm
Weight: 7.7 kg
