GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 642119-001

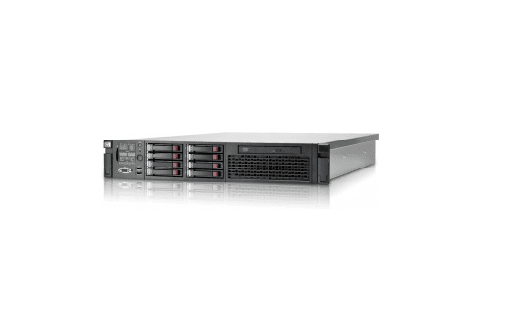

Product Name: Proliant DL380P G8 – 2-Way 2U Rack Mount(Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5-2630 / 2.30 GHz
Compatible Slots: LGA2011 Socket
Multi-Core Technology: Hexa-Core (6 Core)
Quickpath Interconnect: 7.20 GT/S
64 Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Processor Main Features: Hyper Threading Technology
Chipset Model: Intel C600
CACHE MEMORY:
Type: L3 Cache
Installed Size: 15 MB
Cache Per Processor: 15 MB
MEMORY:
Installed Size: 16 GB / 768 GB (Max)
Technology: DDR3 SDRAM
Memory Speed: 1333 MHz
Memory Specifications Compliance: PC3-10600
Form Factor: DIMM 240-Pin
Number Of Total Memory Slots: 24 DDR3 Slots
Features: Registered
Configuration Features: 4 X 4 GB
Ram Supported:
PC3-12800 – 384 GB – Registered
PC3-10600 – 768 GB – Low Voltage – Load-Reduced
PC3-12800 – 128 GB – Unbuffered – Advanced Ecc
PC3-10600 – 384 GB – Hypercloud
STORAGE & STORAGE CONTROLLERS:
Hard Drive : None
Optical Drive : None
Storage Controller Type: 1 X Raid – Plug-In Card – PCI Express 3.0 X8
Controller Interface Type: SATA 6GB/S / SAS 6GB/S
Storage Controller Name: Smart Array P420I With 1GB FBWC
Raid Level: Raid 0/1/1+0/5/5+0/6/6+0
Buffer Size: 1 GB
DISPLAY & GRAPHICS:
Graphics Type: Integrated
Graphics Controller Model: Matrox G200
Video Interfaces : VGA
NETWORK & COMMUNICATION:
Type : Plug-In Card
Interface (Bus) Type : PCI Express X4
Ethernet Controller : 1GB 4-Port 331flr Adapter
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 4
Features : Wake On LAN (WOL), Pxe Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1P, IEEE 802.3AD (LACP)
POWER DESCRIPTION:
Device Type: Power Supply Hot Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt
