GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 653203-B21

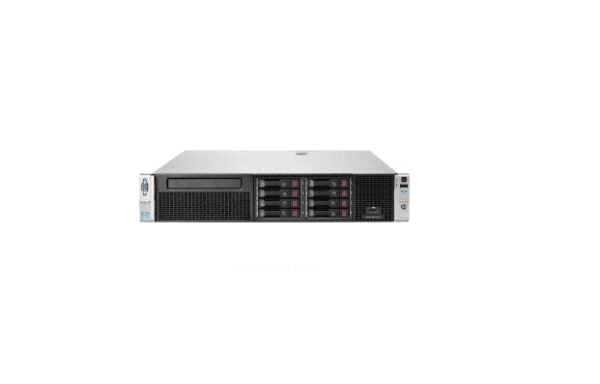

Product Name : Proliant Dl385p G8 2u Rack Mount Cto
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron Processor
Installed Processor : No Cpu
Max Supported Qty : 2
Upgradability : Upgradable
Cache Memory : Level 3
Chipset Type : Amd Sr5690 Northbridge And Sp5100 Southbridge
MEMORY :
Installed Size : None
Maximum Size : 768 Gb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
Features : Hp Smart Memory
STORAGE & STORAGE CONTROLLER :
Hard Drive : None Ship Standard Support Drive Cage – 8sff
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express 3.0 X8
Controller Interface Type : Serial SAta-300 / Sas 2.0
Storage Controller Name : Smart Array P420i
Raid Level : Raid 0, Raid 1, Raid 10
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
1280 X 1024 (32 Bpp)
1920 X 1200 (16 Bpp)
Hp Ilo 4 On System Management Memory
16 Mb Flash
256 Mb Ddr 3 With Ecc (112 Mb After Ecc And Video)
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
1 (Total) / 1 (Free) X Front Accessible – 5.25in Slim Line
8 (Total) / 8 (Free) X Hot-Swap – 2.5in Sff
Expansion Slots Total (Free) :
2 (Total) / 2 (Free) X Processor
24 (Total) / 24 (Free) X Memory – Dimm 240-Pin
1 (Total) / 1 (Free) X Pci Express 3.0 X16 – Full-Length, Full-Height
1 (Total) / 1 (Free) X Pci Express 3.0 X8 – Half-Length, Full-Height
1 (Total) / 1 (Free) X Pci Express 2.0 X8 – Half-Length, Full-Height ( X4 Mode )
Interfaces & Ports :
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
2 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15) ( 1 Front, 1 Rear )
1 X Management – Hp Ilo – Rj-45
4 X Hi-Speed Usb – 4 Pin Usb Type A ( 2 Front, 1 Internal, 1 Sd Slot )
POWER DEVICE :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
DIMENSIONS & WEIGHT :
Width : 17.6 In
Depth : 27.5 In
Height : 3.4 In
Weight : 41 Lbs
