GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 665552-B21

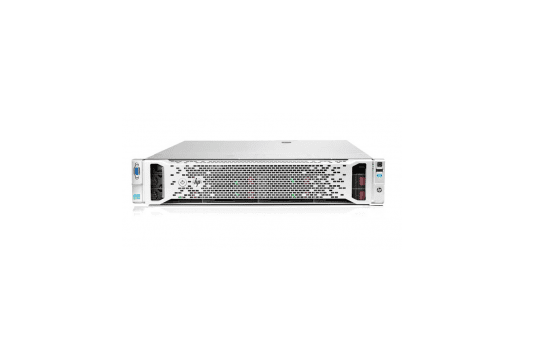

Product Name : Proliant Dl380p G8 Cto Rack Server
PROCESSOR & CHIPSET :
Processor Type : Intel E5-2600 Processor Family
Installed Processor : No CPU
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel C600
Sockets Supported : FCLGA2011
MEMORY :
Installed Size : None
Maximum Size : 384 GB
Technology : DDR3 SDRAM
Form Factor : DIMM 240-PIN
Features : Quad Channel Memory Architecture, Hp Smart Memory
STORAGE & STORAGE CONTROLLER :
Hard Drive : None, Drive Cage – 12lff (With Built-In Expander)
Storage Controller Type : 1 X RAID – PLUG-IN CARD – PCI EXPRESS 3.0 X8
Controller Interface Type : Serial SATA-300 / SAS 2.0
Storage Controller Name : Smart Array P420I
Raid Level : RAID 0, RAID 1, RAID 10
CARD READER :
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox G200
EXPANSIONS & CONNECTIVITY :
Expansion bays total (free) :
1 (TOTAL) / 1 (FREE) X FRONT ACCESSIBLE – 5.25IN SLIM LINE
12 (TOTAL) / 12 (FREE) X HOT-SWAP – 2.5IN LFF
EXPANSION SLOTS TOTAL (FREE) :
2 (total) / 2 (free) x processor
24 (total) / 24 (free) x memory – dimm 240-pin
1 (total) / 1 (free) x pci express 3.0 x16 – full-length, full-height
1 (total) / 1 (free) x pci express 3.0 x8 – half-length, full-height
1 (total) / 1 (free) x pci express 2.0 x8 – half-length, full-height ( x4 mode )
INTERFACES & PORTS :
1 X SERIAL – RS-232 – 9 PIN D-SUB (DB-9)
2 X DISPLAY / VIDEO – VGA – 15 PIN HD D-SUB (HD-15) ( 1 FRONT, 1 REAR )
1 X MANAGEMENT – HP ILO – RJ-45
4 X HI-SPEED USB – 4 PIN USB TYPE A ( 2 FRONT, 1 INTERNAL, 1 SD SLOT )
POWER DEVICE :
Device Type : Power Supply – Hot Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 0
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
