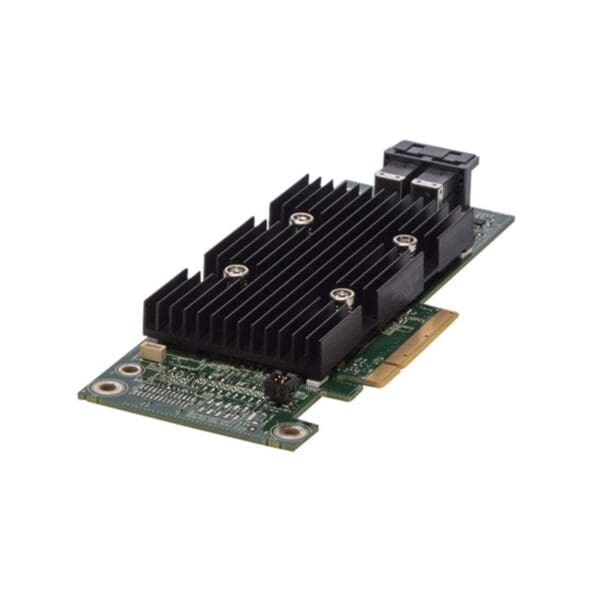

Part Number : 4y5h1
Manufacturer : Dell
Technical Specifications:
Device Type : Storage Controller (raid) – Plug-in Card – Low Profile
Bus Type : Pcie 3.0 X8
Interface : Sata 6gb/s / Sas 12gb/s
Data Transfer Rate : 1.2 Gbps
Supported Devices : Hard Drive, Disk Array (raid), Solid State Drive
Channel Qty : 8
Max Storage Devices Qty : 128
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
System Requirements : Microsoft Windows Server 2008 R2 Sp1, Suse Linux Enterprise Server 10 Sp4, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Vmware Esxi 5.1, Microsoft Windows Server 2012 R2, Suse Linux Enterprise Server 11 Sp3, Red Hat Enterprise Linux 6.5
Dimensions (wxdxh) : 6.6 In X 2.5 In
Designed For : Poweredge C4130, R230, R630, R930, T130, T330, T430, T630
