$8,265.00

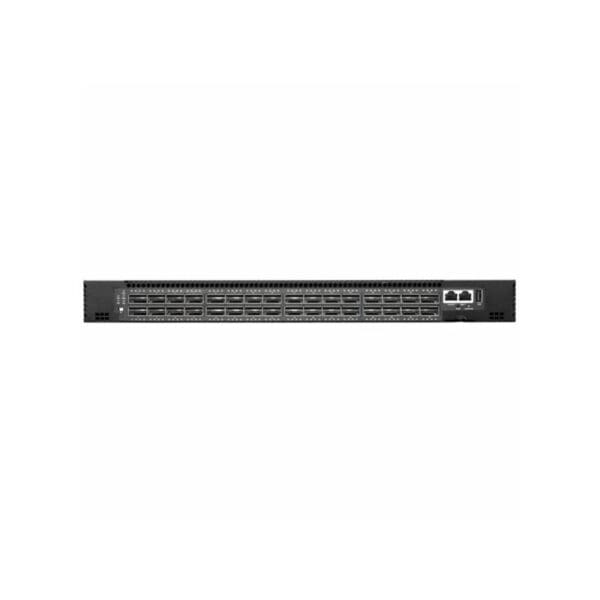

The Edgecore AS7712-32X switch is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across the 32x QSFP28 ports, supporting up to 32 x 40/100 GbE, 64 x 50 GbE, or 128 x 10/25 GbE connections. The AS7712-32X can be deployed as a TOR switch supporting 10/25/50 GbE to servers with 40/50/100 GbE uplinks, or as a spine switch supporting 40/50/100 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE) which supports the installation of compatible Network Operating System software, including the open source options Open Network Linux and OpenSwitch, plus commercial NOS offerings.
Brand Name: Edge-Core
Product Type: Open Switches
Main Port Count: 32 Ports
Main Port Type: QSFP28
Main Port Speed: 100GbE
ASIC: Broadcom Tomahawk+
Processor: Intel Atom C2538
Comparable To: Arista 7060CX-32, Cisco Nexus 3232C, Juniper QFX5200-32C
Layer Switching: L2, L3
Power Supply: Dual PSU
Supported NOS: Big Monitoring Fabric, CN-NOS, Cumulus Linux, Ixia Vision Edge, ONL, PicOS, SONiC
Software: Open Network Install Environment (ONIE)
Dimensions: 17.3 x 20.3 x 1.7 in
Weight: 23 lbs
