$11,999.00

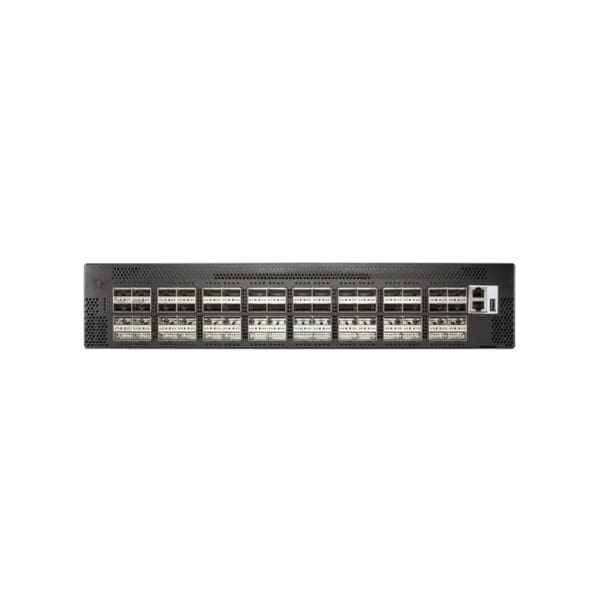

The Edge-Core DCS500 7816-64X-O-48V-F-R is a high performance 12.8T programmable data center switch loaded with ONIE. It is compatible with IP Infusion OcNOS, Pica8 PicOS, Pluribus Networks Netvisor ONE, ONL, Netscout Packet Flow Switch, SONiC, as well as other open source and commercial NOS offerings. It incorporates the Broadcom Tomahawk 2 ASIC. It can be deployed as a TOR switch supporting 10/25G to servers with 40/100G uplinks, or as a spine switch supporting 40/100G spine interconnects. This switch is configurable with optics and software.
Brand Name: Edge-Core
Product Type: Open Switches
Main Port Count; 64 Ports
Main Port Type: QSFP28
Main Port Speed: 100GbE
ASIC Broadcom Tomahawk: 2
Processor: Intel Xeon D-1518
Comparable To: Arista 7260CX3-64, Cisco Nexus 3264C-E
Layer Switching: L2, L3
Power Supply: Dual PSU
Supported NOS: Cisco IOS-XR, CN-NOS, ONL, SONiC
Software: Open Network Install Environment (ONIE)
Dimensions: 17.2 x 22.8 x 3.5 in
Weight: 31 lbs
