GENERAL INFORMATION :
Manufacturer: IBM Corporation
Manufacturer Part Number: 7915G3U

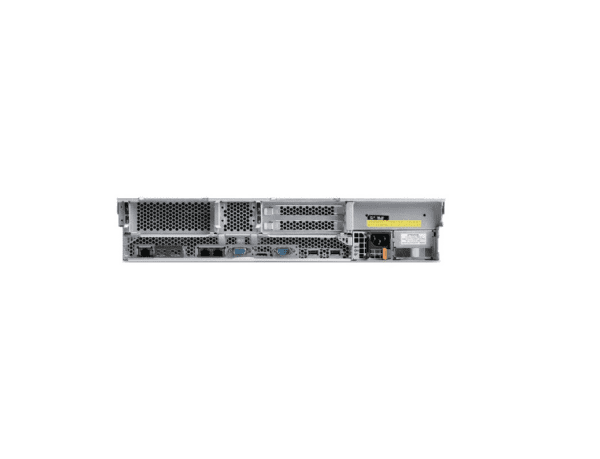

Product Name: System X3650 M4 2u Rack Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5-2650v2/2.6GHz
Max Turbo Speed : 3.4 GHz
Multi-Core Technology : 8-Core (Octa-Core)
Cpu Socket : Lga2011 Socket
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Bios Type : Flash
Upgradability : Upgradable
Processor Main Features :
Hyper-Threading Technology,
Intel Quickpath Interconnect
Intel Extended Memory 64 Technology,
Intel Execute Disable Bit,
Enhanced Intel Speedstep Technology,
Intel Virtualization Technology,
Intel Turbo Boost Technology 2
Chipset Type : Intel C602j
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 20 Mb
Cache Per Processor : 20 Mb
MEMORY :
Installed Size : 8 Gb
Maximum Size : 768 Gb
Technology : Ddr3 Sdram – Ecc Chipkill
Memory Speed : 1600 Mhz
Memory Specification Compliance : Pc3-12800
Form Factor : Dimm 240-Pin
Configuration Features : 1 X 8 Gb
Number Of Memory Slots : 24 Slots
Optional Ram Configuration : 2gb:4gb:8gb:16gb:32gb Dimms
STORAGE & STORAGE CONTROLLER :
Hard Drive : No Hdd, 1 X Sas – Integrated – Pci Express 3.0 X8
Optical Drive Type : None
Controller Interface Type : Sata-600 / Sas 2.0
Storage Controller Name : Serveraid M5110e
Raid Level : Raid 0, Raid 1, Raid 10
Buffer Size : 1 Gb
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Graphics Processor : Matrox Mga G200er2
Video Memory : 16 Mb
NETWORKING :
Networking : Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : Intel I350-Am4
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Management Module V2 (Imm2)
Features : Wake On Lan (Wol), Teaming Support
Compliant Standards : Ieee 802.1q
POWER DESCRIPTION :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 750 Watt
