Specification

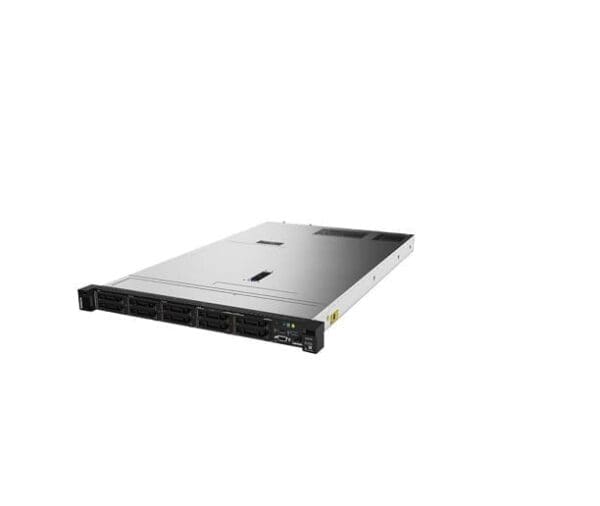

Form factor 1U rack-mount.
Processor Up to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors:
Up to 28 cores (2.7 GHz core speeds).
Up to 3.8 GHz core speeds (4 cores).
UPI links up to 10.4 GT/s (2 UPI links used).
Up to 38.5 MB cache.
Up to 2933 MHz memory speed.
Chipset Intel C624.
Memory 24 DIMM slots (12 DIMMs per processor; six memory channels per processor with two DIMMs per channel) with support for the following DIMM types and capacities:
TruDDR4 RDIMMs:
16 GB, 32 GB, and 64 GB Performance+ 2933 MHz.
8 GB, 16 GB, 32 GB, and 64 GB 2933 MHz.
16 GB and 32 GB 2666 MHz.
TruDDR4 3DS RDIMMs:
128 GB Performance+ 2933 MHz.
128 GB 2933 MHz.
64 GB 2666 MHz.
Memory capacity
Memory DIMMs only: Up to 3 TB with up to 24x 128 GB 3DS RDIMMs (Up to 1.5 TB per processor).
Memory DIMMs and persistent memory modules:
App Direct Mode: Up to 7.5 TB with up to 12x 128 GB 3DS RDIMMs and up to 12x 512 GB DCPMMs (Up to 3.75 TB per processor).
Memory Mode: Up to 6 TB with up to 12x 512 GB DCPMMs (Up to 3 TB per processor).
Memory protection
Processor’s integrated memory controllers: Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
DCPMM’s onboard memory controllers: ECC, SDDC, DDDC, patrol scrubbing, and demand scrubbing.
Drive bays
Up to 6 SAS/SATA hot-swap drive bays: 4x 3.5″ (front) + 2x 2.5″ (rear)
4 LFF AnyBay hot-swap drive bays: 4x 3.5″ (front)
Up to 10 SFF SAS/SATA hot-swap drive bays: 8x 2.5″ (front) + 2x 2.5″ (rear)
Up to 12 SFF hot-swap drive bays:
6x 2.5″ SAS/SATA & 4x 2.5″ AnyBay (front) + 2x 2.5″ SAS/SATA (rear)
10 SFF U.2 NVMe PCIe SSD hot-swap drive bays
Drive types 2.5-inch hot-swap drives:
12 Gbps SAS HDDs up to 2.4 TB
12 Gbps Nearline (NL) SAS HDDs up to 2 TB
12 Gbps SAS HDD SEDs up to 2.4 TB
12 Gbps NL SAS HDD SEDs up to 2 TB
12 Gbps SAS SSDs up to 15.36 TB
12 Gbps SAS SSD SEDs up to 1.6 TB
6 Gbps NL SATA HDDs up to 2 TB
6 Gbps SATA SSDs up to 7.68 TB
6 Gbps SATA SSD SEDs up to 7.68 TB
U.2 NVMe PCIe 3.0 x4 SSDs up to 8 TB
3.5-inch hot-swap drives:
12 Gbps SAS HDDs up to 900 GB (2.5″ HDD in a 3.5″ tray)
12 Gbps NL SAS HDDs up to 16 TB
12 Gbps NL SAS HDD SEDs up to 8 TB
12 Gbps SAS SSDs up to 7.68 TB (2.5″ SSD in a 3.5″ tray)
12 Gbps SAS SSD SEDs up to 1.6 TB (2.5″ SSD in a 3.5″ tray)
6 Gbps NL SATA HDDs up to 16 TB
6 Gbps SATA SSDs up to 7.68 TB (2.5″ SSD in a 3.5″ tray)
NVMe PCIe 3.0 x4 SSDs up to 7.68 TB
Internal M.2 SSDs:
6 Gbps SATA up to 480 GB
