Audio Output Details
Speaker Type :None
Chassis
Form Factor :Rack-mountable
Manufacturer Form Factor :Rack-mountable
Display
Type :None.
Environmental Standards
ENERGY STAR Certified :Yes
ENERGY STAR Version :3.0
Expansion Slots
Size :Half-length, full-height
Type :PCIe 4.0 x16
Size :Low-profile
Slot Comments :For internal storage controller
Type :PCIe 4.0 x8
Type :PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Hard Drive (4th)
Type :None
Optical Storage
Drive Type :No optical drive
Type :None
Video Memory
Installed Size :512 MB
Installed Size :512
Audio Input
Type :None
Header
Brand :Lenovo
Manufacturer :Lenovo System X
Model :7Y99
Packaged Quantity :1

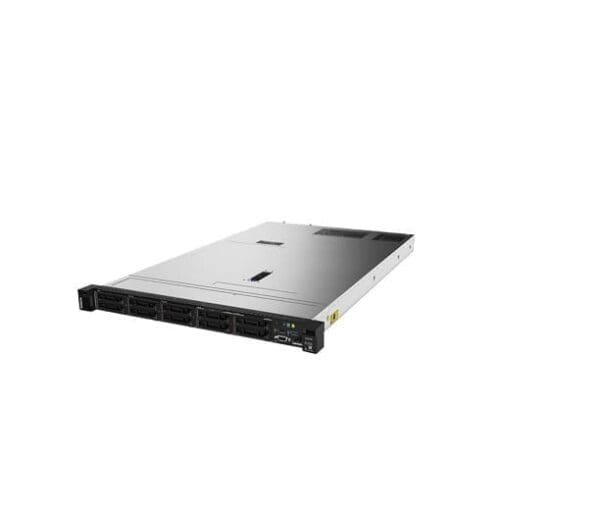

Product Line :Lenovo ThinkSystem SR635
Interface Provided
Connector Type :DB-9
Qty :1
Type :Serial
Connector Type :RJ-45
Type :Management
Location :1 front, 1 rear
Qty :2
Type :VGA
Location :2 front, 1 rear
Qty :3
Type :USB 3.1 Gen 1
Miscellaneous
Color Category :Black
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 32 Class A, BIS, BSMI CNS 13438 Class A, CCC, CISPR 32 Class A, CNS 14336-1, CSA C22.2 No. 60950-1, EAC, EK1-ITB2000, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 A, GB 17625.1, GB 4943.1, GB 9254 Class A, ICES-003 issue 6 Class A, IEC 60950-1 (CB Certificate and CB Test Report), IEC/UL 60950-1, KN32 Class A, KN35, NOM-019, TP TC 004/2011, TP TC 020/2011, TUV GS, VCCI Class A
Height (Rack Units) :1
Included Accessories :Slide tool-less rail kit
Optical Storage (2nd)
Drive Type :No optical drive
Type :None
OS Provided
Type :No operating system
Power Device
80 PLUS Certification :80 PLUS Platinum
Frequency Required :50/60 Hz
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :1100 Watt
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Type :Power supply – hot-plug
