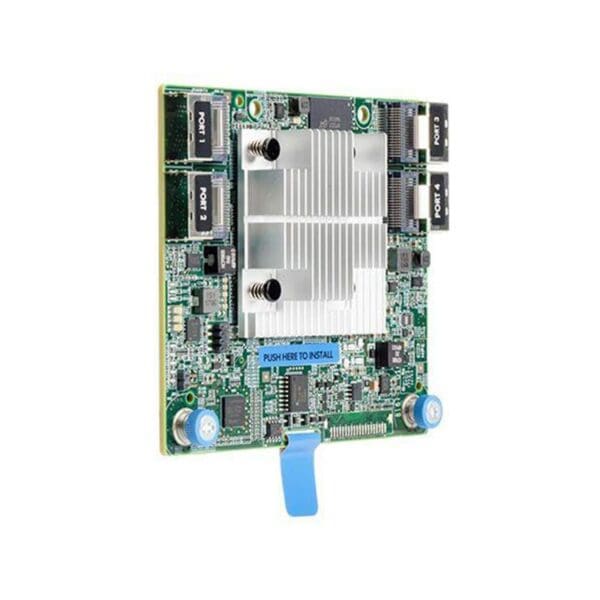

Manufacturer Name: HPE
MPN : 836261-001
Type: Modular Controller
Sub-Type: Smart Array
Technical Information
Storage Interface (SAS/SATA)
16 SAS Lanes Across 4 X4 Internal Mini-Sas Ports
12GB/S SAS, 6GB/S SATA Technology
Mix-And-Match SAS And SATA Drives To The Same Controller
Support For SAS TAPE DRIVES
4 GB Flash-Backed Write Cache (FBWC)
PCI Express 3.0 X8 Link
RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM (Advanced Data Mirroring)
Mixed Mode (Raid Logic Drives And HBA Physical Drives Simultaneously)
Seamless Upgrades From Hpe Smart Array S-Class And E-Class Controllers
