Improved Performance: The controller delivers high-speed data transfer with a 12 GB/s SAS interface and 6 GB/s SATA interface.
Increased Storage Capacity: With support for up to 128 SAS or SATA drives, the controller provides ample storage capacity for growing data needs.
Enhanced Data Protection: The controller includes advanced data protection features such as online spare, RAID 6 (ADG), RAID 60, and the option to add HPE SmartCache or HPE SmartPath for even higher data protection.

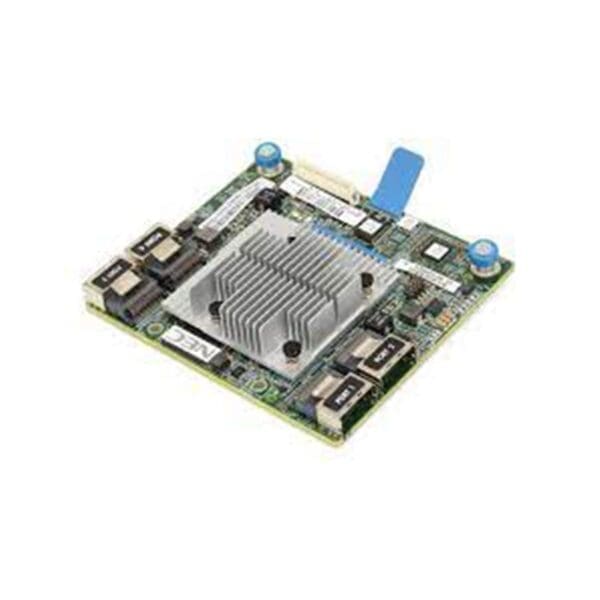

Brand: HPE
Manufacturer Part Number : 869085-002
Product Type: Controller
Sub-Type: SAS-SATA
Data Transfer Rate
12GB/s SAS Per Lane
6GB/s SATA Per Lane
PCI Express 3.0 X8 Lane Width
Form Factor
Type-a Modular Controller
Ports:
Internal: 16 SAS Lanes Across 4 X4 Mini-SAS Ports
Cache
4 GB Flash-backed Write Cache
Raid Levels
0, 1, 5, 6, 10, 50, 60, 1 Adm, 10 Adm
