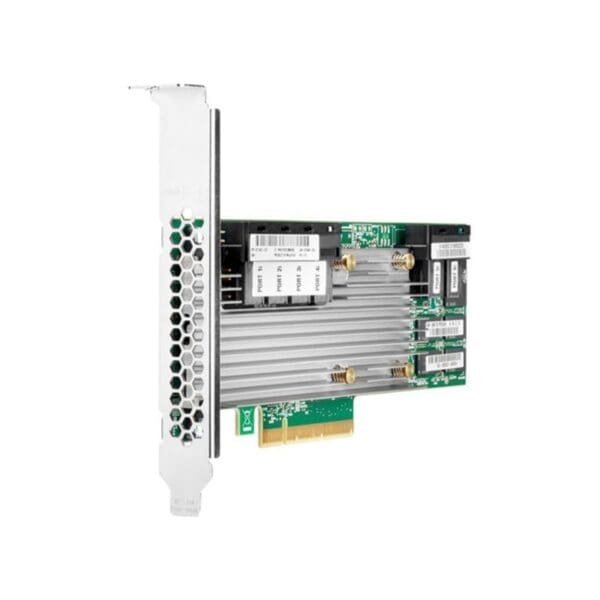

Manufacturer Part Number 870658-B21
Brand Name HPE
Product Type SAS Controller
Technical Information
Host Interface PCI Express
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Data Backup Type Flash Backed Cache
Memory
Cache Memory 4 GB
Interfaces/Ports
Total Number of SAS Ports 24
Number of SAS Ports (Internal) 24
SAS Connector Details 6
Physical Characteristics
Height 7.5″
Width 9.5″
Depth 2.3″
Form Factor Plug-in Card
Weight (Approximate) 12 oz
Miscellaneous
Environmentally Friendly Yes
Environmental Certification WEEE
