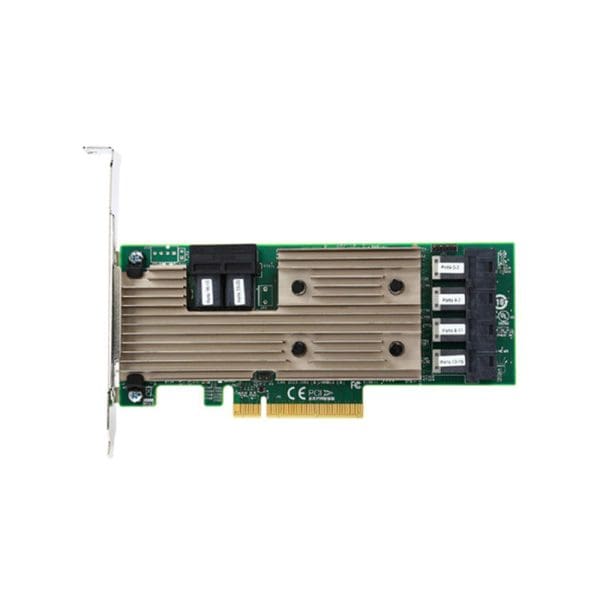

9305-24I Broadcom LSI 12Gb/s 24-Port Internal PCI Express 3.0 SAS Non-RAID Controller

$730.00

The Broadcom 9305-24I supports the latest in storage interface technologies, including SAS with a blazing-fast 12 gigabits per second (Gbps) transfer rate. Additionally, it accommodates SATA drives with a speed of 6Gbps, ensuring compatibility with a wide range of storage devices.

9305-24I Broadcom LSI 12Gb/s 24-Port Internal PCI Express 3.0 SAS Non-RAID Controller
$730.00

Host Bus Type: X8 Lane Pci Express 3.0

Physical Dimensions: 2.7 X 6.6

Devices Supported: 1024 Non-raid Sata/sata Devices Per Controller

Internal Connectors: 6 Mini-sas Hd Sff8643

Internal Ports: 24

Operating Temperature: 0°c To 55°c

Operating Voltage: +12v +/-8%, 3.3v +/-9%

Os Support: Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical

Cable Support: Passive Copper, Active Optical

I/o Controller: Sas3224
