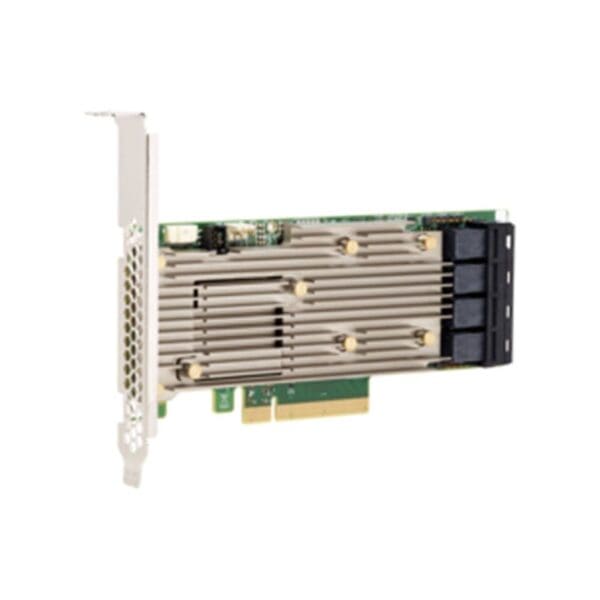

Brand : BROADCOM
Manufacturer Part Number : 9460-16I
Physical Dimensions Low Profile 6.127” X 2.712”
Cache Protection Cachevault Cvpm05
Host Bus Type X8 Lane Pci Express® 3.1
Cache Memory 4gb 2133 Mhz Ddr4 Sdram
Raid Management Software Lsi Storage Authority (lsa), Storcli (command-line Interface), Hii (uefi Human Interface Infrastructure).
Internal Ports 16
Data Transfer Rates 12 Gb/s Sas-3 And 8 Gt/s Pcie Gen 3 (nvme) Compliant.
Devices Supported Sas/sata: 255, Nvme: 4 X4, Up To 24 X2 Or X4*
Internal Connectors 4 Mini-sas Hd X4 Sff-8643
Operating Temperature 10° To 55° C
Operating Voltage(v) +12v +/-8%, 3.3v +/-9%
