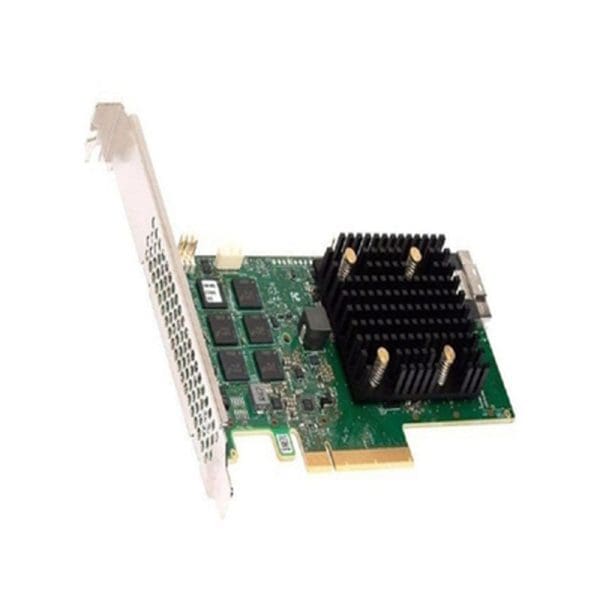

9560-8I Broadcom MegaRAID 12Gbps SAS/SATA/PCIE Controller

9560-8I Broadcom MegaRAID 12Gbps SAS/SATA/PCIE Controller

$1,330.00

The Megaraid 9500 Series Is The Industry’s First Pcie Gen 4.0 Raid Adapter Family, Offering Pcie Gen 4.0 Host And Storage Interfaces. The Megaraid 9560-8I Adapter, Based On The Sas3908 High-port Count Pcie 4.0 X8 Raid-on-chip (roc), Delivers Twice The Performance Of Previous Generations.

9560-8I Broadcom MegaRAID 12Gbps SAS/SATA/PCIE Controller
$1,330.00
Contact Us

Manufacturer: Broadcom

Product Type: SAS SATA Controller

Product Name: Raid Controller

Host Bus: Pcie 4.0 X8

Storage Controller

Interface: SAS/SATA/PCIE Controller

Buffer Size: 4GB

Supported Devices: Disk Array (Raid)

Channel Qty: 8

Max Storage Devices Qty: 240

Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, JBOD, Raid 60

Expansion / Connectivity for NVMe RAID Controller

Interfaces 1 X SATA 6gb/S / SAS12gb/S / PCIE 4.0 (NVMe) – Slim Sas (SFF-8654) (Internal)

Environmental Parameters

Min Operating Temperature: 32 °F

Max Operating Temperature: 131 °F

Humidity Range Operating: 5 – 90% (Non-Condensing)
