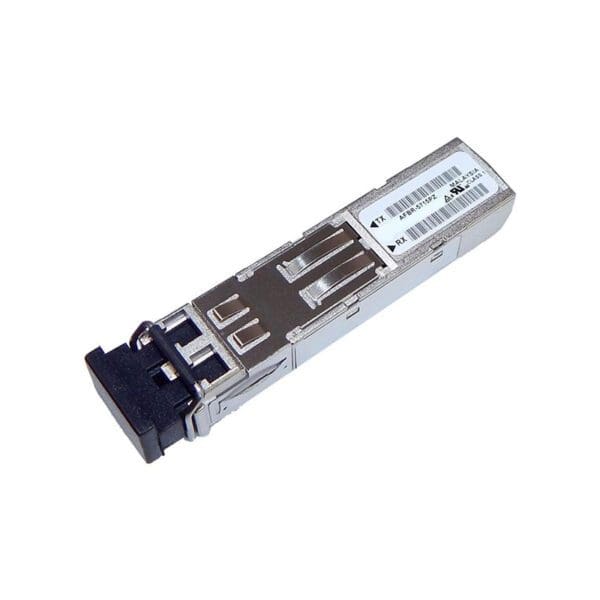

Manufacturer: IBM
Device Type: SFP (Mini-Gbic) Transceiver Module
Technical Information
Connectivity Technology: Wired
Data Rate: 1.25 Gbps
Wavelength: 850 nm
Maximum Cable Distance: 550 meters over 50/125 μm multimode fiber or 300 meters over 62.5/125 μm multimode fiber
Connector/Interface: LC Duplex
Digital Diagnostics Monitoring (DDM): Yes
Operating Temperature Range: 0°C to 70°C (32°F to 158°F)
Power
Power Supply: 3.3V
Power Consumption: < 1 Watt Physical characteristics Max Distance 550m Cable Type: MMF DOM Support: Yes Temperature range: -10 to 85°C Compliance Standards MSA Compliant, IEEE 802.3z Warranty Lifetime Replacement Dimensions: 8.5 x 13.4 x 56.5mm Weight: 15 grams
