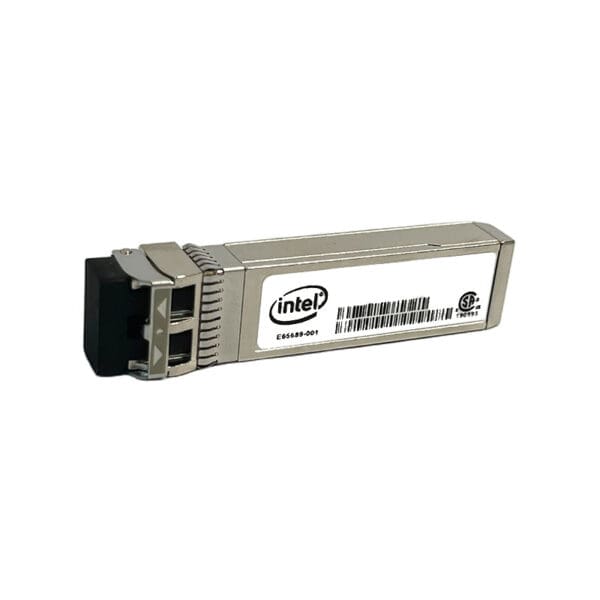

Brand: Intel
Part Number: AFBR-709DMZ-IN2_NEW
Condition: New Sealed
Media Type: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm.
RX Wavelength: 850 nm.
Minimum Optical Budget: 4.6 dB
Maximum Distance: 300m
Supported Data Rate: 1.25-10.31 Gbps
Supported Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
DDM/DOM: Support
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 20 nm (840-860 nm)
Rx Wavelength Bandwidth:20 nm (840-860 nm)
Minimum Transmitting Power: -6.5 dB
Maximum Transmitting Power: 1 dB
Receiver Sensitivity: -11.1 dBm
Receiver Overload: -1 dBm
Dispersion: 110 ps/nm
Transmitter Type: VSCEL Laser
Receiver Type: PIN photo
diode Power:+3.3V single power supply
Chipset: MAXIM, MINDSPEED, SEMTECH
