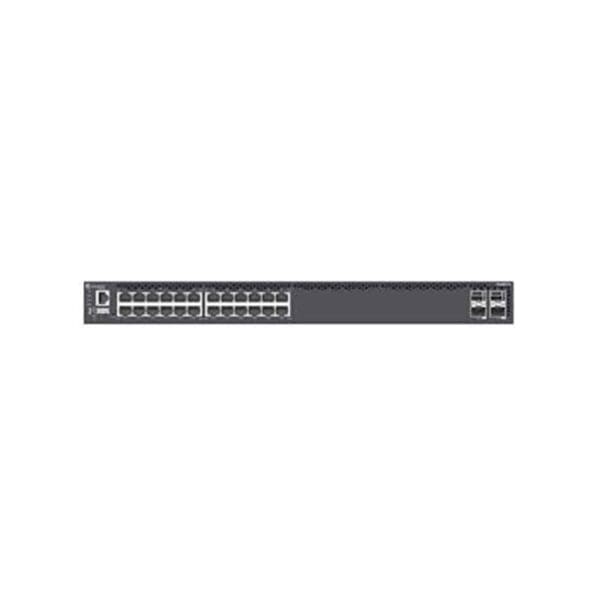

AL5900A1F-E6 Extreme Networks Ethernet Routing Switch

Extreme Ethernet Routing Switch 5900 products deliver the agility to perform equally in conventional IP and Ethernet Fabric-based networking solutions. The Ethernet Routing Switch 5900 products leverage the latest advances in network switching architecture design to maximize hardware performance and software capability. These products represent a clear evolutionary step for the Ethernet Routing Switch 5000 Series, particularly in terms of value and future ready flexibility, and have been optimized for the Enabled Edge role.

AL5900A1F-E6 Extreme Networks Ethernet Routing Switch

Brand: Extreme Networks

Model: 5928GTS

Manufacturer: EXTREME NETWORKS

Network & Communication

Advanced Switching: Layer 3

Compliant Standards: IEEE 802.1aq, IEEE 802.1Q, IEEE 802.1x

Form Factor (Hubs & Switches): Rack-mountable

Jumbo Frame Support: 9216 bytes

MAC Address Table Size: 32000 entries

Manageable: Yes

Max Units In A Stack: 8

Ports: 28

Product Type: witch

Subcategory: Network hubs and switches

Switching Type: Gigabit Ethernet

Connectivity

Port Quantity: 24

Ports Type (2nd): 10 Gigabit SFP+

Scanning

Power

Frequency: 50/60 hertz

Nominal Voltage: AC 120/230 V

Power Provided: 450 watt

Power Supplies Installed: 1

Power Supplies Supported: 2

Software

Software Type: Base Software License

Technical Information

Max Operating Temperature: 50 degree Celsius

Max Storage Temperature: 85 degree Celsius
