Brand areca

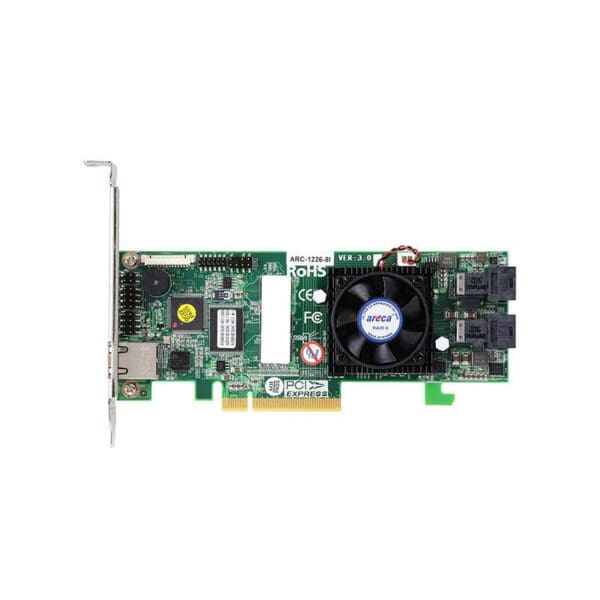

Model Arc-1226-8I
Form Factor Low Profile
Details
Product Type SAS Controller
Internal Connectors 2 x SFF-8643
Interface PCI-Express 3.0
Transfer Rate Up to 12Gb/s
Cache Memory 1GB on-board DDR3-1600 SDRAM with ECC
RAID RAID level 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
Operating Systems Supported Windows 10 / 8 / Server 2012 / 7 / 2008 / Vista / XP / 2003
Linux
FreeBSD
VMware (Driver 6.x support CLI in-band management utility)
Solaris 10 / 11 x86 / x86_64
Mac OS X 10.4 or Higher
Features
Features Dual Core RAID-on-Chip (ROC) 1.2 GHz processor
PCIe 3.0 x8 lane host interface
1GB on-board DDR3-1600 SDRAM with ECC
Write-through or write-back cache support
Support up to 4/8 internal or 4/8 external 12Gb/s SAS ports
ARC-1216-4i supports up to 4 x 12Gb/s SAS / SATA HDDs
BIOS boot array support for greater fault tolerance
Boot support for the uEFI host BIOS
NVRAM for RAID event & transaction log
Redundant flash image for controller availability
Multi-adapter support for large storage requirements
Support flash-based or battery backup module (FBM/BBM) ready (optional)
RoHS compliant
