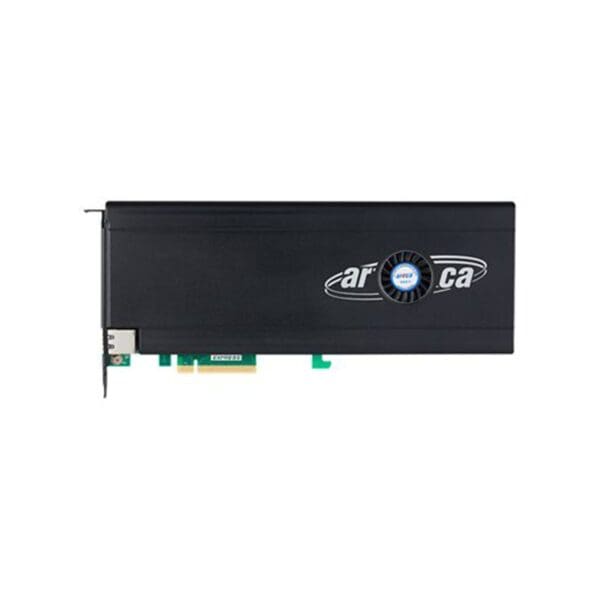

Brand : Areca
Manufacturer Part Number : ARC-1886-6N2I
Device Type Storage Controller (RAID)
Host Bus PCIe 4.0 x8
Storage Controller
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Buffer Size 8 GB
Supported Devices Hard drive, disk array (RAID), solid state drive
RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, JBOD, RAID 60
Processor ARM A15 1.6 GHz
Expansion / Connectivity
Bays Internal – M.2 NGFF/2230/2242/2260/2280/22110
Interfaces 1 x SATA 6Gb/s / SAS 12Gb/s – 1×8 Slim SAS (SFF-8654) ¦ 4 x M.2 Card – M.2 Card ¦ 1 x Ethernet
Miscellaneous
Features LED indicator, SNMP support, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, power fail protection, UNMAP support, supports UEFI-BIOS, clone function
Compliant Standards FCC, RoHS
Software / System Requirements
OS Required Apple MacOS, Linux, FreeBSD, Citrix XenServer, Windows 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, unRAID
System Requirements Details Dual core processor – 1.6 GHz
Dimensions & Weight
Depth 8.1 in
Height 4.2 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 140 °F
Humidity Range Operating 10 – 85% (non-condensing)
