Manufacturer
Areca
Brand
Areca
Product Line
Areca
Model
ARC-1886-8i
Packaged Quantity
1
General
Product Type

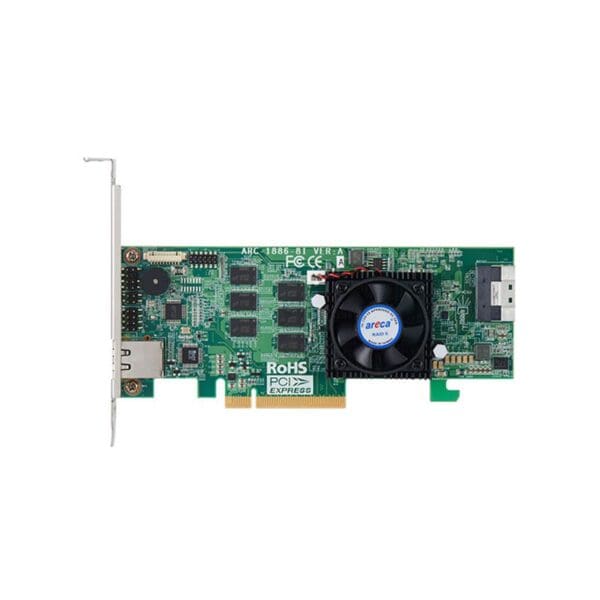

Storage controller (RAID)
Processor
Type
A15
Manufacturer
ARM
Clock Speed
1.6 GHZ
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 4.0 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s
Interface
SATA 6Gb/s / SAS 12Gb/s
Channel Qty
8
Supported Devices
Disk array (RAID), Hard drive, Solid state drive
Max Storage Devices Qty
512
Buffer Size
8 GB
RAID Level
JBOD, RAID 0, RAID 1, RAID 10, RAID 1E, RAID 3, RAID 30, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
1 x SATA 6Gb/s / SAS 12Gb/s – 1×8 Slim SAS (SFF-8654)
Power Device
Type
None
Power Consumption Operational
12 watt
System Requirements
OS Required
Apple MacOS, Citrix XenServer, FreeBSD, Linux, Microsoft Windows Server 2016, Microsoft Windows Server 2019, unRAID, Windows 10
Miscellaneous
Color Category
Green
Compliant Standards
FCC, RoHS
Dimensions & Weight
Depth
6.6 inch
Height
2.5 inch
Environmental Parameters
Min Operating Temperature
41 degree Fahrenheit
Max Operating Temperature
140 degree Fahrenheit
Humidity Range Operating
15 – 80% (non-condensing)
