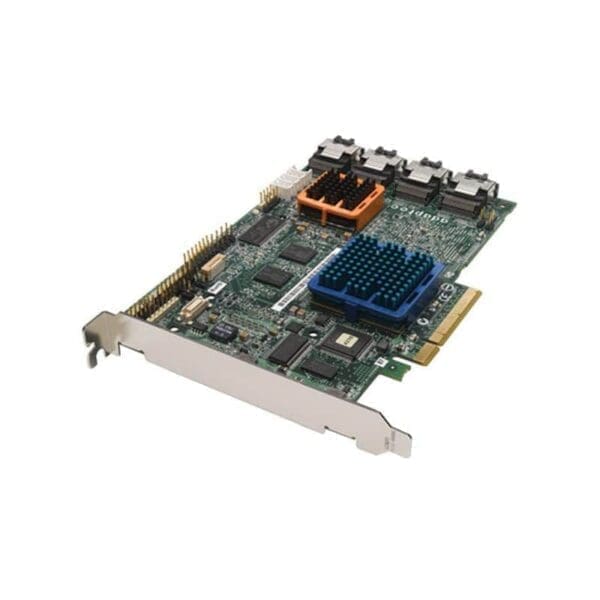

ASR-31605 Adaptec PCI-E X8 SAS-SATA W/256MB Cache Controller

$60.00

The Adaptec ASR-31605 PCI-E X8 SAS-SATA W/256MB Cache Controller Card is a high-performance hardware solution that enhances server performance by providing additional storage capabilities. It is designed to meet the needs of enterprise-level data centers and IT professionals who require fast and reliable storage solutions.

The Adaptec ASR-31605 Controller Card is a SAS (Serial Attached SCSI) and SATA (Serial Advanced Technology Attachment) RAID (Redundant Array of Independent Disks) controller that supports up to 16 SAS or SATA hard disk drives. The device comes equipped with a PCI Express x8 interface, which provides high-speed data transfer rates of up to 2.5 Gbps. This feature allows for faster data access and transfer rates, which is essential for enterprise-level applications.

ASR-31605 Adaptec PCI-E X8 SAS-SATA W/256MB Cache Controller
$60.00

Manufacturer: Adaptec

Part Number or SKU# ASR-31605

Product Type: Controller

Product Name: SAS-SATA

Technical Specifications

Host Interface: PCI Express X8

Data Transfer Rate: Up To 300mbps Per Port

Raid Levels: 0, 1, 1e, 5, 5ee, 6, 10, 50, 60, Jbod

Drive Support: Up To 16 X Physical

Platform Support: Pc, Unix, Solaris

Standard Memory: 256MB Ddr2

Interfaces/ports: Ports 4 X Sff-8087 Sas 300 – Serial Attached Scsi Internal

Form Factor: Pci Express X8 Plug-in Card

Dimensions

Width: 6.6 Inch

Height: 4.6 Inch
