Brand: Cisco
Product Line: Cisco ASR
Model: 1002-X Base Bundle
Manufacturer: CISCO DS HARDWARE DIRECT
Memory
Max Memory Supported: 16 GB
RAM Installed: 4 GB
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Expansion Slots
Expansion Slots: 3 (total) / 3 (free) x expansion slot
Connectivity
Interface Provided: 6 x Ethernet 1000 – SFP (mini-GBIC)
Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Management: 1 x auxiliary – RJ-45
Management: 1 x console – RJ-45
USB: 2 x 4 pin USB Type A
Power
Power Supplies Installed: 2
Software
Operating System: Cisco IOS XE Universal
Software Type: Cisco IOS Advanced Enterprise Services
Dimensions & Weight
Height: 3.5 inch
Height (Rack Units): 2
Width: 17.2 inch
Depth: 18.1 inch

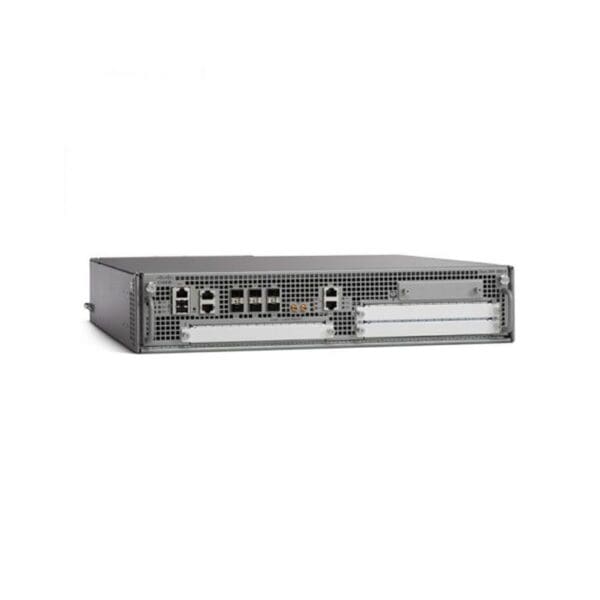

ASR1002X-10G-K9 Cisco ASR 1002-X Base Bundle Router
$16,059.00
Cisco ASR1002X-10G-K9 router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb
