Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: ASR1004-20G-FPI/K9
Brand Name: Cisco
Product Line: Cisco ASR
Product Series: Cisco ASR 1000
Product Model: ASR1004
Product Name: ASR 1004 Multi Service Router
Product Type: Route
FPI Bundle
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: Embedded Service Processor
Expansion Slot Type: Route Processor
Expansion Slot Type: Shared Port Adapter
Network & Communication
VoIP Supported: No
Management & Protocols
Security Features-
IP Security
Network Address Translation
Zone-Based Policy Firewall: L2TP, 3DES, AES, SSH
Memory
Standard Memory: 4 GB
Memory Technology: DRAM
Flash Memory: 1 GB
Power Description
PoE (RJ-45) Port: No
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Power Source: Power Supply
Redundant Power Supply: Yes

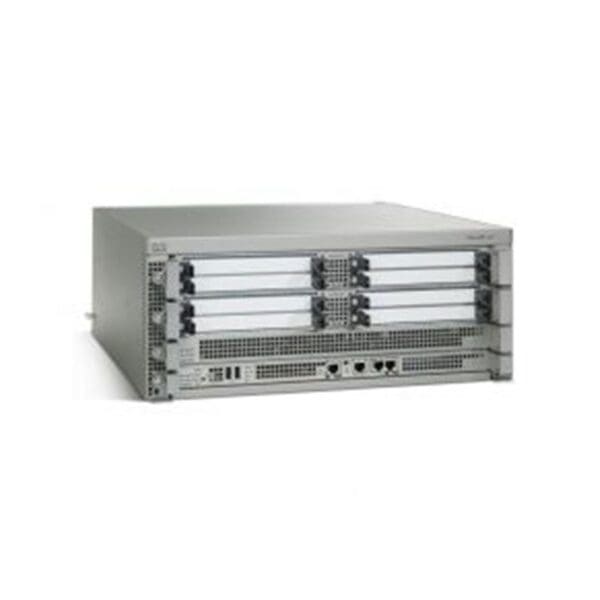

ASR1004-20G-FPI/K9, Cisco ASR 1000 Router ASR1004 FPI Bundle
$34,899.00
The Cisco ASR 1000 series aggregation services routers are designed to optimize service provider edge and enterprise aggregation solutions. The innovative hardware and software design of these routers integrates powerful resiliency and intelligent services into a single router platform.
The Cisco ASR 1004 router in a 4-rack unit (RU) form factor supports up to 8 shared port adapters (SPAs) and comes with one route processor and one embedded services processor slot. This provides flexibility for future upgrades, enhancing control plane and data plane scalability. The Cisco ASR 1004 router provides 10 Gbps throughput support, making it a very cost-effective edge solution.
