Manufacturer :Juniper Mist Cloud Products
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series

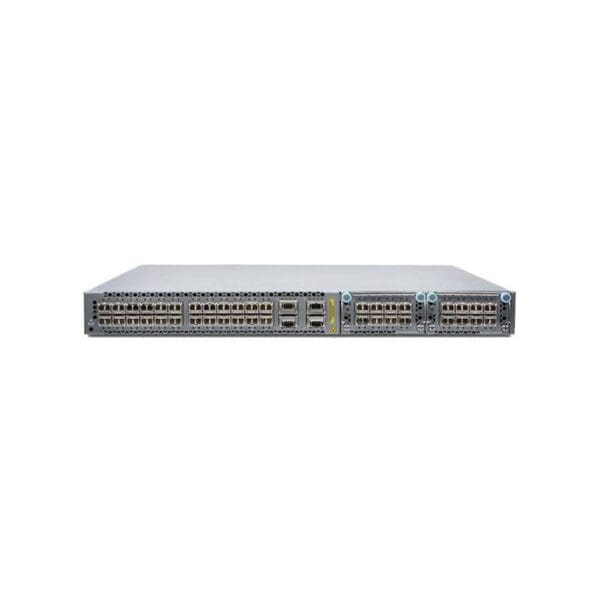

Model :EX4600
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Performance
Performance :Layer 2 / layer 3 firewall throughput (64-byte packet size): 1071 Mpps, Unidirectional switching capacity: 720 Gbps, Bidirectional switching capacity: 1.44 Tbps
Capacity
Capacity :IPv6 routes (Unicast): 64000, MSTP instances: 64, Virtual interfaces (VLANs): 4096, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, IPv4 routes (Unicast, host routes): 208000, VSTP instances: 253, IPv4 routes (Unicast): 128000, Maximum member ports per LAG: 32, ARP entries: 48000, Firewall filters: 4000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :24
