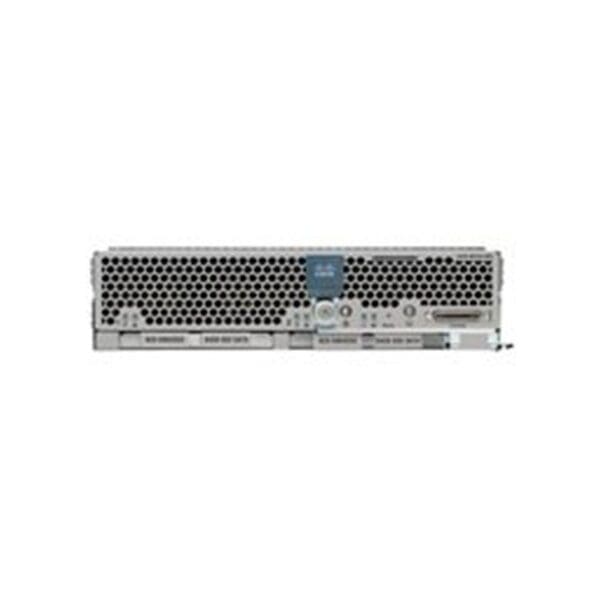

Cisco UCS
E160D M2
Series: E160
Cache Memory
Installed Size :15 MB
Per Processor Size :15 MB
Type :L3 cache
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade
Hot-Swap Bays Qty :3 Bays
Manufacturer Form Factor :Blade Server
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Display
Type :None.
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 240-pin
Type :PCIe
Type :SD card
Hard Drive
Type :No HDD
Mainboard
Processor Socket :LGA1356 Socket
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None
RAM
Empty Slots :1
Features :Dual rank, Registered
Form Factor :DIMM 240-pin
Installed Size :8 GB
Max Supported Size :48 GB
Memory Specification Compliance :PC3-10600
Memory Speed :1333 MHz
Rated Memory Speed :1333 MHz
Slots Qty :3
Technology :DDR3 SDRAM
System
Hard Drive Capacity :0 GB
Type :Server
Interface Provided
Connector Type :RJ-45
Qty :1
Type :Management
Qty :2
Type :USB
Type :LAN (Gigabit Ethernet)
Type :VGA
Networking
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports :2 x Gigabit Ethernet
Form Factor :Integrated
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, HTTP, IPMI 2.0
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, ICES-003 Class A, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI V-3
Included Accessories :2x 8 GB SD Memory Card
