Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS

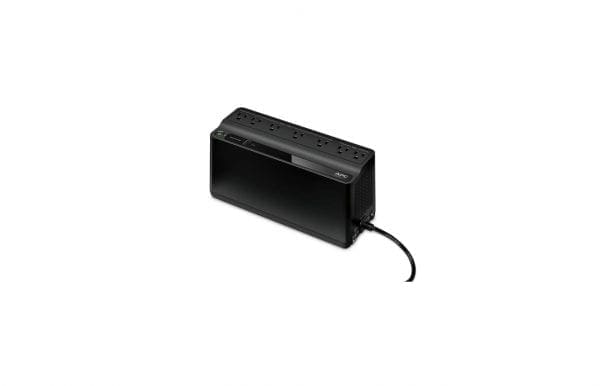

Model :BE600M1
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Cable Details
Cables Included :Power cable 5 ft
Software
Type :APC PowerChute Personal Edition
Power Device
Form Factor :External
UPS Technology :Off-line
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 8%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Stepped approximation to a sinewave
Power Provided :330 watt
Power Capacity (VA) :600 volt ampere per kilogram 600VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 92 – 139 V
Input Voltage Range (Adjustable) :AC 88 – 142 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :4 pin USB Type A, 7 x power NEMA 5-15R
Output Connector Qty :7
Surge Suppression :Yes
Switchover Time :6 millisecond
Surge Energy Rating :490 joules
Circuit Protection :Circuit breaker
Efficiency :98.1% at 50% Load, 98.6% at 75% Load, 98.8% at 100% Load, 96.5% at 25% Load
Power Device Features :Automatic self-test, Audible alarm, Muted alarm, Intelligent Battery Management, Hot-swappable batteries, LED indicators
Power Output Connectors Details
Power Output Connectors Details :5 x power NEMA 5-15R (UPS and surge), 1 x 4 pin USB Type A – 5 V, 2 x power NEMA 5-15R (surge)
Battery
Included Qty :1
Voltage Provided :12 volt
Run Time (Up To) :3.2 minute (time unit)
Load Type :At full load
Recharge Time :10 Hours
Lead Acid Battery Features :Maintenance free, Leak-proof, Sealed
Run Time Details
Run Time (Up To) :8.7 min at 200 Watts, 3.2 min at full load, 11.8 min at half load, 23.2 min at 100 Watts, 4 min at 300 Watts, 52.7 min at 50 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :75000 US Dollars
Compliant Standards :cTUVus, UL 1778, RoHS, CEC, FCC Part 15 Class B, NOM, REACH
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :10.8 inch
Depth :4.1 inch
Height :5.5 inch
Weight :7.69 lbs
Dimensions & Weight (Shipping)
Shipping Width :14.3 inch
Shipping Depth :6.6 inch
Shipping Height :7.7 inch
Shipping Weight :8.4 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 90%
Sound Emission :35 dBA
