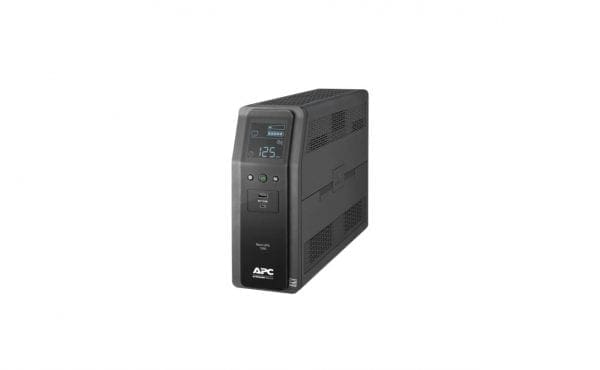

BN1375M2 Back UPS PRO BN 1375VA, 10 Outlets, 2 USB Ports, AVR

Back UPS PRO BN 1375VA, 10 Outlets, 2 USB Charging Ports, AVR, LCD interface

High Performance Computer and Electronics UPS for Premium Power Protection

Includes: coaxial cable, USB cable, User Manual

BN1375M2 Back UPS PRO BN 1375VA, 10 Outlets, 2 USB Ports, AVR

Manufacturer :APC

Brand :APC

Product Line :APC Back-UPS Pro

Packaged Quantity :1

Output

Max Configurable Power (Watts)

810Watts / 1350VA

Output Frequency (sync to mains)

60Hz +/- 3 Hz

Topology Line Interactive

Waveform type Stepped approximation to a sinewave

Transfer Time 8ms typical : 10 ms maximum

Input

Input frequency

60 Hz +/- 3 Hz

Input voltage range for main operations

88 – 139V

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules 1

Typical recharge time

16hour(s)

Replacement Battery

APCRBC162

RBC Quantity 2

Battery Charge Power (Watts)

10Watts

Battery Volt-Amp-Hour Capacity

153

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

1080Joules

Data Line Protection

RJ45 10/100/1000 Base-T Ethernet protection, Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)

Filtering

Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

Maximum Height

10.24inches (260MM, 26.0CM)

Maximum Width

3.94inches (100MM, 10.0CM)

Maximum Depth

14.49inches (368MM, 36.8CM)

Net Weight

22.93lbs. (10.4KG)

Shipping weight

28.66lbs. (13.0KG)

Shipping Height

14.96inches (380MM, 38.0CM)

Shipping Width

9.49inches (241MM, 24.1CM)

Shipping Depth

19.69inches (500MM, 50.0CM)

Color Black

Master Carton Units 1.0

Master Carton Weight

28.66lbs. (13.0)

Units per Pallet 16.0

SCC Codes

1073130433535 8

Environmental

Operating Temperature

32 – 104 °F (0 – 40 °C)

Operating Relative Humidity

0 – 95 (non-condensing) %

Operating Elevation

0-10000ft (0-3000meters)

Storage Temperature

-15 – 40 °C

Storage Relative Humidity

0 – 95 (non-condensing) %

Storage Elevation

0-10000ft (0-3000meters)

Audible noise at 1 meter from surface of unit

45.0dBA
