Manufacturer :APC
Brand :APC

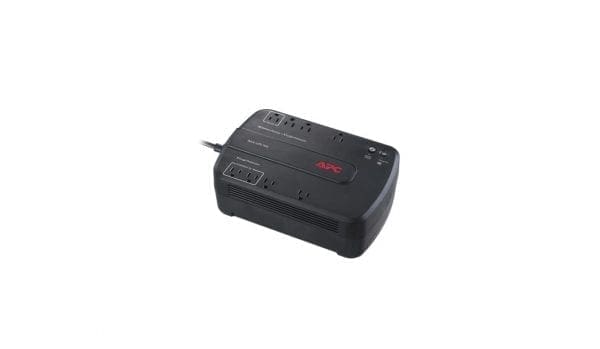

Product Line :APC Back-UPS NS
Country Kits :United States
Packaged Quantity :1
Output
Max Configurable Power (Watts)
420Watts / 700VA
Output Frequency (sync to mains)
60Hz +/- 3 Hz
Topology Standby
Waveform type
Stepped approximation to a sinewave
Transfer Time
6ms typical : 10ms maximum
Input
Input frequency
60 Hz +/- 3 Hz
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 24hour(s)
Replacement Battery RBC17
Expected Battery Life (years) 3 – 5
Battery Charge Power (Watts) 4Watts
Battery Volt-Amp-Hour Capacity 95
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s) USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
340Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector)
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
3.4inches (86MM, 8.6CM)
Maximum Width
7.1inches (180MM, 18.0CM)
Maximum Depth
11.2inches (284MM, 28.4CM)
Net Weight
12.4lbs. (5.64KG)
Shipping weight
14.4lbs. (6.55KG)
Shipping Height
4.96inches (126MM, 12.6CM)
Shipping Width
8.86inches (225MM, 22.5CM)
Shipping Depth
15.2inches (386MM, 38.6CM)
Master Carton Units 2.0
Master Carton Weight
30.0lbs. (13.64)
Units per Pallet 100.0
SCC Codes
1073130430281 7
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
5 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
5 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
16.0BTU/hr
