Manufacturer :APC
Brand :APC

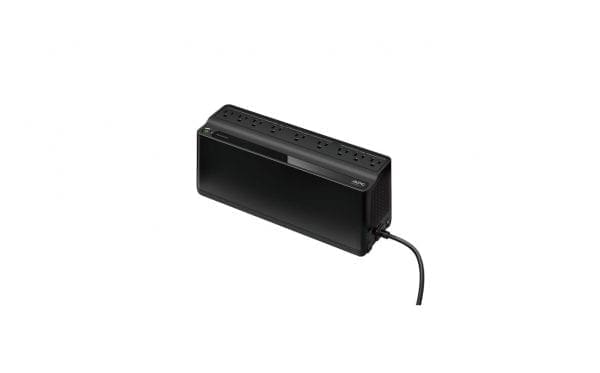

Product Line :APC Back-UPS
Country Kits :United States
Packaged Quantity :1
Output
Max Configurable Power (Watts)
480Watts / 900VA
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Topology Standby
Waveform type
Stepped approximation to a sinewave
Transfer Time
6ms typical : 10ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
92 – 139V
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 8hour(s)
Replacement Battery RBC17
Expected Battery Life (years) 2 – 5
Battery Charge Power (Watts) 13Watts
Battery Volt-Amp-Hour Capacity 104
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s) USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
354Joules
Physical
Maximum Height
5.47inches (139MM, 13.9CM)
Maximum Width
12.87inches (327MM, 32.7CM)
Maximum Depth
4.13inches (105MM, 10.5CM)
Net Weight
9.04lbs. (4.1KG)
Shipping weight
9.7lbs. (4.4KG)
Shipping Height
7.72inches (196MM, 19.6CM)
Shipping Width
16.38inches (416MM, 41.6CM)
Shipping Depth
6.61inches (168MM, 16.8CM)
Master Carton Units 2.0
Master Carton Weight 21.61lbs. (9.8)
# of Layers per Pallet 5.0
# of Units per Layer per Pallet 16.0
Pallet Weight 912.71lbs.
Units per Pallet 80.0
