Manufacturer :APC
Brand :APC

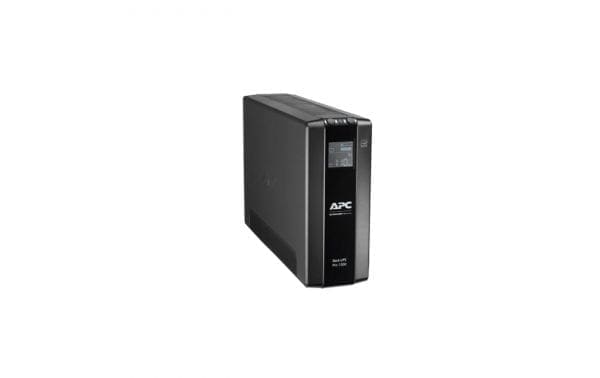

Product Line :APC Back-UPS Pro
Packaged Quantity :1
Output
Max Configurable Power (Watts)
780Watts / 1300VA
Output Frequency (sync to mains)
50/60 Hz +/-1 Hz
Topology Line Interactive
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
176 – 294V
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 16hour(s)
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Charge Power (Watts) 11Watts
Battery Volt-Amp-Hour Capacity 177
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
509Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Filtering
Full time multi-pole noise filtering :10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height
3.94inches (100MM, 10.0CM)
Maximum Width
9.84inches (250MM, 25.0CM)
Maximum Depth
15.04inches (382MM, 38.2CM)
Net Weight
22.49lbs. (10.2KG)
Shipping weight
26.12lbs. (11.85KG)
Shipping Height
12.99inches (330MM, 33.0CM)
Shipping Width
19.09inches (485MM, 48.5CM)
Shipping Depth
8.86inches (225MM, 22.5CM)
Color Black
Master Carton Units 1.0
Master Carton Weight
28.0lbs. (12.7)
SCC Codes
1073130434690 3
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (non-condensing) %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 (non-condensing) %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
21.5BTU/hr
