Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro

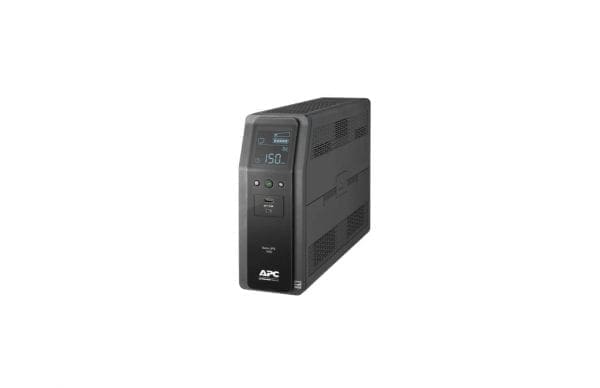

Model :BR1500MS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Interface Provided
Interfaces :1 x management
Cable Details
Cables Included :USB cable, Coax cable, Power cable 6 ft
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :900 watt
Power Capacity (VA) :1500 volt ampere per kilogram 1500VA
Max Electric Current :12 ampere
Voltage Required :AC 120 volt
Input Voltage Range :AC 88 – 147 V
Frequency Required :60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15R
Output Connector Qty :10
Surge Suppression :Yes
Switchover Time :8 millisecond
Surge Energy Rating :1080 joules
Circuit Protection :Circuit breaker
Power Device Features :Audible alarm, Automatic Voltage Regulation (AVR), Automatic self-test, LCD display
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15R (UPS and surge), 1 x 4 pin USB Type A, 4 x power NEMA 5-15R (surge), 1 x 24 pin USB-C
Dataline Surge Protection
Dataline Surge Protection :Coaxial – 1 input line / 1 output line, Network – RJ-45 – 1 input line / 1 output line
Battery
Run Time (Up To) :4.1 minute (time unit)
Load Type :At full load
Recharge Time :16 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :9.3 min at 600 Watts, 14.5 min at half load, 77 min at 100 Watts, 39.6 min at 200 Watts, 17.1 min at 400 Watts, 131 min at 50 Watts, 4.1 min at full load, 24.8 min at 300 Watts, 5.4 min at 800 Watts, 7.1 min at 700 Watts, 12.4 min at 500 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :500000 US Dollars
Compliant Standards :NOM, CEC, DOE, RoHS, REACH, TUV C
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.9 inch
Depth :14.5 inch
Height :10.2 inch
Weight :27.56 lbs
Dimensions & Weight (Shipping)
Shipping Width :8.8 inch
Shipping Depth :19 inch
Shipping Height :14.1 inch
Shipping Weight :31.31 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :45 dBA
