Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro

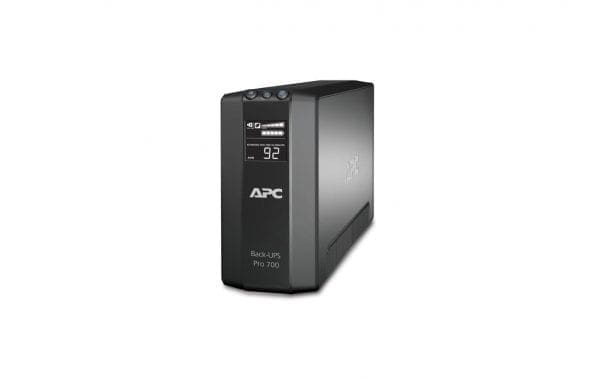

Model :LCD 700 Master Control
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Cable Details
Cables Included :Power cable – integrated – 6 ft, USB cable – external
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Stepped approximation to a sinewave
Power Provided :420 watt
Power Capacity (VA) :700 volt ampere per kilogram 700VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 88 – 143 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :6
Surge Suppression :Yes
Switchover Time :8 millisecond
Surge Energy Rating :354 joules
Circuit Protection :Circuit breaker
Power Device Features :Audible alarm, LCD display, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :3 x power NEMA 5-15 (UPS and surge), 3 x power NEMA 5-15 (surge)
Dataline Surge Protection
Dataline Surge Protection :Network/phone line – RJ-45, Cable TV/satellite/antenna – F connector
Battery
Run Time (Up To) :3.4 minute (time unit)
Load Type :At full load
Recharge Time :12 Hours
Run Time Details
Run Time (Up To) :3.4 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :REACH, RoHS, TUV, FCC Part 15 B, UL 1778, NOM
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.6 inch
Depth :12.2 inch
Height :7.5 inch
Weight :15.76 lbs
Dimensions & Weight (Shipping)
Shipping Width :5.4 inch
Shipping Depth :17.4 inch
Shipping Height :9.9 inch
Shipping Weight :17.64 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
