Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro

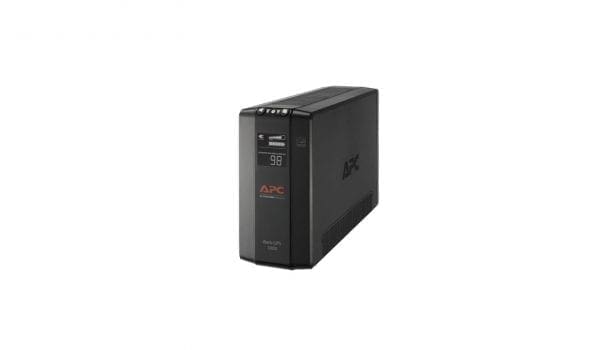

Model :BX1000M
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Interface Provided
Interfaces :1 x management
Cable Details
Cables Included :Power cable – integrated – 6 ft, USB cable
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :60 hertz
UPS Output Waveform :Stepped approximation to a sinewave
Power Provided :600 watt
Power Capacity (VA) :1000 volt ampere per kilogram 1000VA
Max Electric Current :15 ampere
Voltage Required :AC 120 volt
Input Voltage Range :AC 88 – 139 V
Frequency Required :60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Qty :8
Surge Suppression :Yes
Switchover Time :8 millisecond
Surge Energy Rating :1103 joules
Circuit Protection :Circuit breaker
Power Device Features :LCD display, Automatic Voltage Regulation (AVR), Audible alarm
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15R (UPS and surge), 4 x power NEMA 5-15R (surge)
Dataline Surge Protection
Dataline Surge Protection :Coaxial – 1 input line / 1 output line, Network – RJ-45 – 1 input line / 1 output line
Battery
Run Time (Up To) :4.3 minute (time unit)
Load Type :At full load
Recharge Time :12 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :13.5 min at half load, 22.3 min at 200 Watts, 4.3 min at 600 Watts, 8.9 min at 400 Watts, 46.4 min at 100 Watts, 13.5 min at 300 Watts, 6.2 min at 500 Watts, 84 min at 50 Watts, 4.3 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :250000 US Dollars
Compliant Standards :UL 1778, CEC, FCC Part 15 Class B, RoHS, REACH
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.6 inch
Depth :12.2 inch
Height :7.5 inch
Weight :15.87 lbs
Dimensions & Weight (Shipping)
Shipping Width :5.6 inch
Shipping Depth :17.4 inch
Shipping Height :10 inch
Shipping Weight :17.64 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :45 dBA
