Manufacturer :APC
Brand :APC
Product Line :APC Back-UPS Pro

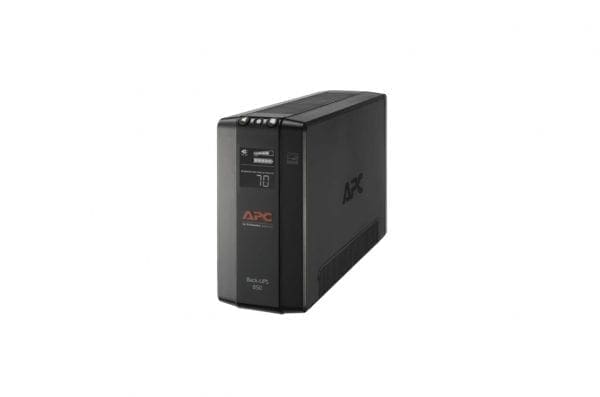

Model :BX850M
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Interface Provided
Interfaces :1 x management (RS-232), 1 x management (USB)
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :120 volt
Frequency Provided :60 hertz
UPS Output Waveform :Stepped approximation to a sinewave
Power Provided :510 watt
Power Capacity (VA) :850 volt ampere per kilogram 850VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 88 – 139 V
Input Voltage Range (Adjustable) :AC 88 – 107 V
Frequency Required :60 hertz
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :8
Surge Suppression :Yes
Switchover Time :10 millisecond
Surge Energy Rating :1103 joules
Circuit Protection :Circuit breaker
Power Device Features :Audible alarm, PowerSafe Technology, LCD display, Overload indicator, Automatic Voltage Regulation (AVR), Automatic self-test
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA 5-15 (surge), 4 x power NEMA 5-15 (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection :Network – RJ-45, Coaxial
Battery
Voltage Provided :12 volt
Recharge Time :12 Hours
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color Category :Black
Compliant Standards :FCC Part 15 B
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.6 inch
Depth :12.2 inch
Height :7.5 inch
Weight :14.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
