Capacity
Type : Active VLANs
Value : 4094
Type : ARP entries
Value : 47000
Type : IPv4 routing table entries
Value : 256000
Type : IPv6 routing table entries
Type : MAC addresses
Value : 55000
Type : NetFlow entries
Type : QoS hardware entries
Value : 128000
Type : Security services entries
Type : Spanning Tree Protocol instances
Value : 10000
Type : Switched virtual interfaces (SVIs)
Card Reader
Supported Flash Memory Cards : SD Memory Card
Performance
Type : IPv4 routing
Value : 250 Mbps
Type : IPv6 routing
Value : 125 Mbps
Type : Per-slot switching capacity
Value : 48 Gbps
Type : Switching capacity
Value : 928 Gbps
RAM
Installed Size : 4 GB
Networking
Compliant Standards : IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az

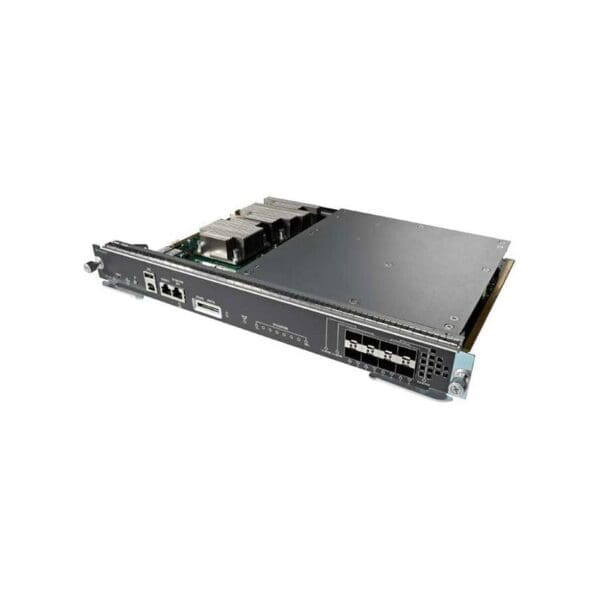

C1-X45-SUP8-E Cisco ONE Catalyst 4500 Series Supervisor 8-E
$8,099.00
The Cisco Catalyst 4500E Supervisor Engine 8-E is the enterprise-class switching engine that provides full convergence between wired and wireless networks on a single platform. This Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the wireless convergence and helps enable uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization.
