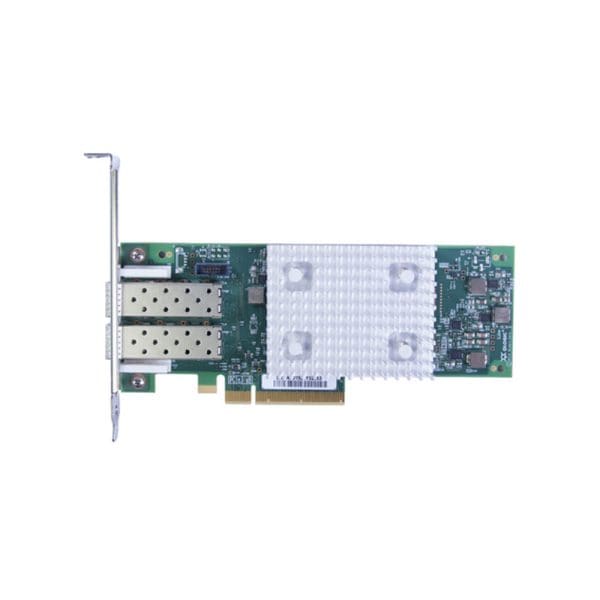

Manufacturer: Dell
MPN: CK9H1
Type: Controller
Controller Type: Fiber Channel
Technical Specifications
Interface: PCI Express 3.0 x8
Transfer Rate: 16 Gbps
Ports: Dual Port
Fibre Channel: FC-PI-5 compliant
Buffer Credits: 2048 per port
MTU: 2048/2112 bytes
SFP Support: Shortwave, Longwave and SWL
Optical Reach: 300m (shortwave), 10km (longwave), 10km (SWL)
LED Indicators: 4 per port for Link and Activity
Power Consumption: 19W typical, 25W maximum
Operating Temperature: 10°C to 55°C
Storage Temperature: -40°C to 70°C
Dimensions: 6.6″ x 2.536″ x 0.59″ (168.3mm x 64.5mm x 15mm)
Weight: 0.45 lbs (0.204 kg)
Agency Approvals: CE, FCC, VCCI, C-Tick, BSMI, KC, ICES, RoHS
